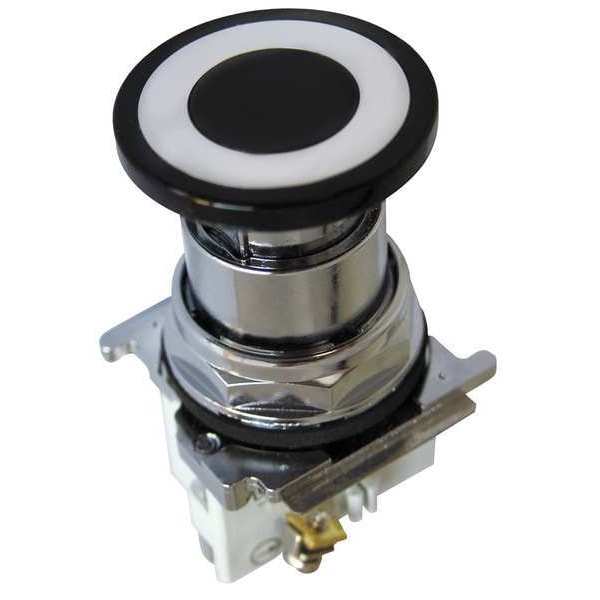

Eaton Emergency Stop Push Button, Black 10250T9B60-3X - main

Emergency Stop Push Button, Black

  • Mfr # 10250T9B60-3X

  • Zoro # G5226137

product price: $186.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Color
Black
Type of Operator
40mm Mushroom Head
Action
Maintained/Maintained/Momentary
Head Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T9B60-3X
Zoro #
G5226137
UPC #
786680121005
Country of Origin
United States

Dimensions

Size
30 mm
Product Height
2.87 IN
Product Diameter
1.38 in
Mushroom Head Diameter
40 mm
Manufacturer Warranty Length
1 yr
Overall Width
1.38 in
Panel Cutout Diameter
30 mm
Overall Height
2.87 in

Details

Item
Emergency Stop Push Button
Material
metal
Color
Black
Type of Operator
40mm Mushroom Head
Action
Maintained/Maintained/Momentary
Head Material
Metal
Basic Material
Metal
Contact Form
2NC
Terminal Connection
Screw Clamp
Standards
CE, CSA, UL Listed
Features
Factory Assembled
Number of Operators
1
NEMA Rating
12, 13, 3, 3R, 4, 4X
Bezel
Chrome Plated Zinc Die Cast
IP Rating
IP65
Contact Rating
10A @ 600V AC
Legend
No Legend
Product Type
Push Button Operators
Bezel Material
Chrome Plated Zinc Die Cast
Type
Class I Division 2
Series
10250T
Compliances
CE Marked
Actuator color
Black
Actuator
Standard
Number of positions
Three-position
Illumination
Non-illuminated
Contact configuration
2NC
Special Features
Factory Assembled
Rating
NEMA 3, 3R, 4, 4X, 12, 13, NEC Class I Division 2, Groups B, C and D
Operating Mode
Maintained push and intermediate, momentary pull
Certifications
UL Listed
Product Name
Eaton 10250T pushbutton
Operator Material
Metal
DC Contact Rating
5 A @ 250 V
Head Color
Black
Hazardous Location Specification
Class I, Div 2, Group B, C, D
Operator Voltage Rating - Maximum
120 V AC/DC
Resistance Properties
Oil and Grease Resistant, Watertight
Mechanical Operating Durability
1.00 x 10^7
AC Contact Rating
10 A @ 600 V
Number of Indicator Lights
0
Operating Temperature - Maximum
150 Degrees F
Maintained Action Release
Push/Pull
Push Button Style
Mushroom Head
Operator Illumination
Non-Illuminated
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Operating Temperature - Minimum
1 Degrees F

Description

Emergency Stop Push Button, 30 mm, Maintained/Maintained/Momentary Action, 40mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 2NC, Bezel Chrome Plated Zinc Die Cast, Color Black, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend No Legend, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Factory Assembled, Material Metal
