This item is Discontinued.

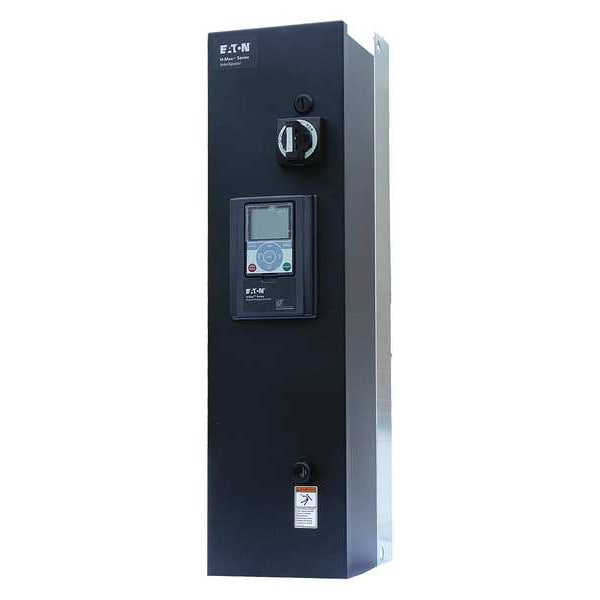

Eaton Enclosed Drive W/Bypass, 5 HP, LED HMX7D634NAP6

Enclosed Drive W/Bypass, 5 HP, LED (Discontinued)

  • Mfr # HMX7D634NAP6
  • Zoro # G8823096
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HMX7D634NAP6
Zoro #
G8823096
UPC #
-
Country of Origin
United States

Dimensions

Depth
12.49 in
Height
30 in
Width
7.88 in
Overall Width
7 7/8 in
Overall Height
10 3/8 in
Overall Depth
30 in

Details

Output Phase AC
Three
Input Phase AC
Three
Standards
CE Marked, UL 508C, cUL Certified, IEC 61800-5-1, EN 61800-5-1
Adjustable Deceleration Time
0.1 to 3,000 sec
Start/Stop Control
Programmable
Item
Variable Frequency Drive
Max. HP
5 hp
With Line Contactor / No Line Contactor
With Line Contactor
Input Frequency
50/60 Hz
Enclosure
Totally Enclosed
Output Frequency Range
0 to 320 Hz
Control Type
Keypad, Remote
Key Pad Lockout
Yes
Display Type
LED
Input Voltage
480V AC
Adjustable Acceleration Time
0.1 to 3,000 sec
Displays
Speed, Alarms and Programmable
Protection
Earth Fault, Motor Overload, Motor Stall, Motor Underload, Over Current, Over Voltage, Overtemperature, Short-Circuit, Surge, Under Voltage
Starting Torque
150%
Torque @ 1 Hz
110%
Control Method
Frequency Control (V/f) Open Loop Sensor less
Output Voltage
480V AC
Accepts Input Control Signal
Remote Contact
For Use With
3-Phase Inverter Duty Motor
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Digital Readout
Yes
Max. Output Amps
7.6 A
With Bypass / No Bypass
With Bypass
Number of Outputs
(1) Analog Out, (2) Form C Relay Out, (1) Form A Relay Out
Maximum Output Power
2 hp
Output Type
Analog
Enclosure Rating
NEMA 1
Output Voltage Range
480V AC
Application
HVAC, Mechanical Contractor AC Drive, Pump
Number of Inputs
(6) Digital Inputs, (2) Analog Inputs
Input Type
Analog, Digital
Brake Chopper Included
No
Maximum Output Current
7.5 A
Style
Pump, HVAC & Mechanical Contractor Drive
Torque Application
Variable Torque
Color
Black/Blue/Gray
Series
H-Max
Dynamic Braking
No
Input Voltage Range
460 to 480V AC
Ethernet Port Included
Yes

Description

Variable Frequency Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 2 hp, Maximum Output Current 7.5 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0 to 320 Hz, Enclosure Rating NEMA 1
