  15. ExtendedPushButton, Yellow, Non-Illum, 22mm

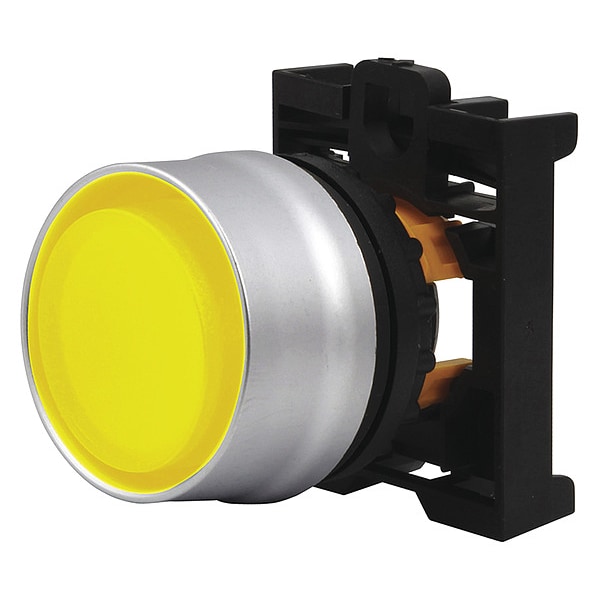

Eaton ExtendedPushButton, Yellow, Non-Illum, 22mm M22-DGH-Y - main

ExtendedPushButton, Yellow, Non-Illum, 22mm

  • Mfr # M22-DGH-Y

  • Zoro # G3633617

product price: $21.19
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Yellow
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22-DGH-Y
Zoro #
G3633617
UPC #
786685276397
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Size
22.5 mm
Product Height
5 in
Product Width
5 in
Product Length/Depth
1 in
Overall Depth
2.26 in
Manufacturer Warranty Length
1 yr
Overall Height
1 in
Overall Width
1 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Yellow
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Number of Operators
1
Bezel
Silver
Features
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Series
M22
IP Rating
IP67, IP69K
Type
Pushbutton
Bezel Material
Silver
Product Type
Push Button Operators
Operating mode
Momentary
Degree of protection
NEMA 13
Environmental rating
IP67, IP69K, NEMA 4X, NEMA 13
Actuator Color
Green
Actuator
Flush, button
Operating cycles
5 million
Certifications
CCC Marked
Mounting method
Flush
Compliances
Bureau Veritas
Inscription
I
Actuator function
Momentary
Button color
Green
Illumination
Non-illuminated
Product Name
Eaton M22 modular pushbutton
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Corrosion Resistant
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Material
Polycarbonate
Hazardous Location Specification
Not Rated
Number of Indicator Lights
0
Operating Temperature - Minimum
-13 Degrees F

Description

Extended Push Button, Momentary, Head Material Plastic, Bezel Material Silver, IP Rating IP67, IP69K, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
