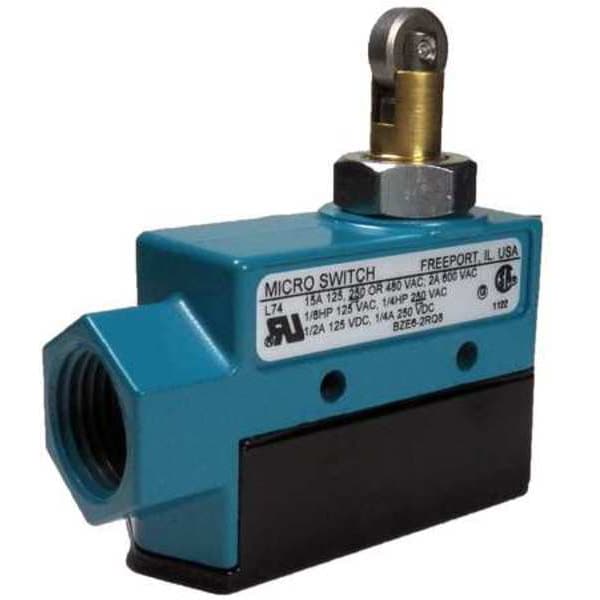

Limit Switch - BZE6, Roller Plunger, SPDT, 15A 600V, IP66, Surface Mount

  • Mfr # BZE6-2RQ8

  • Zoro # G3991915

product price:
$
143.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BZE6-2RQ8
Zoro #
G3991915
UPC #
-
Country of Origin
United States

Dimensions

Height
2.50"
Actuator Length
1.2 in
Depth
3.04"
Roller Dia.
0.5 in
Width
1.00"
Roller Width
0.18 in
Body Height - Limit Switch
1.75 in
Body Width - Limit Switch
3.04 in
Actuator Length - Limit Switch
1.2 in
Body Depth - Limit Switch
1.0 in
Roller Diameter
0.5 in
Body Depth
1 in
Overall Width
3.04 in
Body Width
3.04 in
Body Height
1.75 in
Overall Depth
1 in
Mounting Hole Diameter
0.98 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
DC Contact Rating - Limit Switch
2A at 250V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Basic Actuator Style (Limit Switch)
Plunger
Operating Force
9 oz to 13 oz
Amps
15 Ind./2 Ind./0.5 Res./0.25 Res
Voltage Rating
600VAC/250VDC
NEMA Rating
1
Electrical Connection
Screw Terminals
Body Style (Limit Switch)
Miniature
Roller Material
Steel
Actuator Style
Roller Plunger
Actuator Location (Limit Switch)
Top
Boot Sealed Actuator (Limit Switch)
No
Mounting Hole Spacing - Limit Switch
1.00 in
Series
BZE6
Limit Switch Style
General Purpose Limit Switch
Wiring Entry
1/2 in NPT
Stem Thread - Limit Switch
No Stem
Movement
Release Force 0.25 lb min
Contact Form
1NO/1NC
Boot Sealed Actuator - Limit Switch
No
AC Contact Rating
15 A @ 600 V
IP Rating
IP66
DC Contact Rating
2 A @ 250 V
Body Material
Metal
Mounting Hole - Limit Switch
(2) 0.22 in dia
Contact Form - Limit Switch
1NC/1NO
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Travel
Differential Travel 0.002 in, Maximum Pretravel 0.015 in, Minimum Over Travel 0.140 in
Actuator Location
Top
Actuator Style (Limit Switch)
Plunger, Roller
Standards
CE, CSA, UL Listed
Number of Poles
1
Operating Temp. Range
-25 Degrees to 160 Degrees F
Differential Travel
0.002 in
Pretravel
0.02 in
Boot Sealed Actuator
No Boot Included
Overtravel
0.14 in
NEMA Enclosure Rating
1
Operating Temperature - Minimum
-25 Degrees F
Operating Force - Minimum
9 ozf
Operating Temperature - Maximum
160 Degrees F
Body Configuration
Non Plug-In
Operating Force - Maximum
13 ozf
Mounting Style
Surface
Number of Mounting Holes
2
Mounting Hole Horizontal Center to Center Distance
25 mm

Description

Honeywell’s BZE6 Series Limit Switch features a roller plunger actuator and is suitable for installation in indoor and outdoor environments, subject to compliance with specified ratings and protection standards.

The switch incorporates a zinc die-cast miniature body with surface mounting, offering compact installation where space is limited. It uses the Honeywell MICRO SWITCH BZ snap-spring mechanism and contains single-pole double-throw (SPDT) contacts: one normally closed (NC), one normally open (NO).

Key Features:

  • AC Contact Rating: 15A at 600V; DC Contact Rating: 2A at 250V
  • Actuator Style: Plunger, Roller; Actuator Length: 1.2 in; Roller Diameter: 0.5 in (steel)
  • Body Dimensions: Height 1.75 in, Width/Depth 3.04 in x 1 in; Miniature style
  • Mounting: Surface mount with two horizontal holes spaced at 1.00 in center-to-center
  • Electrical Connection: Screw terminals; Wiring Entry: 1/2 in NPT
  • Operating Force Range: Minimum 9 ozf to Maximum 13 ozf
  • Travel Parameters: Differential travel of 0.002 in, pretravel of up to .02 in, overtravel of .14 in
  • Temperature Range: -25°F to +160°F
  • Rated IP66, NEMA Type 1 enclosure per manufacturer specifications
  • Certified to applicable UL and CSA standards
