  13. FlushPushButton, Blk, Grn, Rd, Wht, Ylw, 22mm

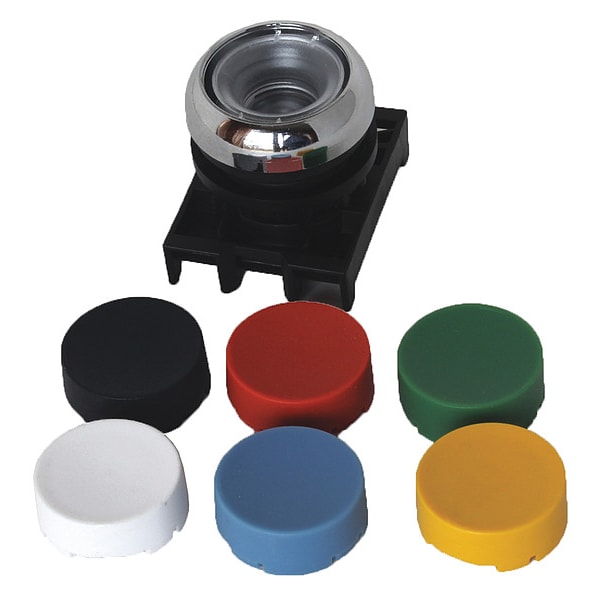

Eaton FlushPushButton, Blk, Grn, Rd, Wht, Ylw, 22mm M22-D-X-SWRGYB - main

FlushPushButton, Blk, Grn, Rd, Wht, Ylw, 22mm

  • Mfr # M22-D-X-SWRGYB

  • Zoro # G3632786

product price: $15.99
/ea

Key Features

Size
22.5 mm
Product Type
Push Button Operators
Environmental rating
IP67, IP69K (IP66 key-release)
Series
M22
Product Length/Depth
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22-D-X-SWRGYB
Zoro #
G3632786
UPC #
786685864341
Country of Origin
Germany

Dimensions

Size
22.5 mm
Product Length/Depth
4 in
Product Width
6 in
Product Height
1 in
Overall Height
1 in
Overall Depth
2 in
Overall Width
1 in
Manufacturer Warranty Length
1 yr
Panel Cutout Diameter
22 mm

Details

Item
Flush Push Button
Product Type
Push Button Operators
Environmental rating
IP67, IP69K (IP66 key-release)
Series
M22
Type
M22 Pushbutton Operator
Enclosure
NEMA 13
Bezel
Metal
Mounting Method
Flush
Illumination
Non-illuminated
Actuator Function
Momentary
Degree Of Protection
NEMA 13;NEMA 4X
Button Color
Black, white, red, green, yellow, blue
Operating Cycles
5 million
Compliances
Bureau Veritas;CE Marked;GoST-R
Actuator
Flush, button
Product Name
Eaton M22 modular pushbutton
Certifications
CSA Certified;CCC Marked;Lloyd's Register Certified
Actuator Color
Black, red, green, white, yellow, blue
Operating Mode
Momentary
Operating Temperature - Maximum
158 Degrees F
Terminal Connection
Screw Clamp
Bezel Material
Silver
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Features
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Number of Indicator Lights
0
Resistance Properties
Corrosion Resistant
IP Rating
IP67, IP69K
Operator Illumination
Non-Illuminated
Push Button Style
Flush
Operating Temperature - Minimum
-13 Degrees F
Head Color
Black, Green, Red, White, Yellow
Number of Operators
1
Hazardous Location Specification
Not Rated
Operator Material
Polycarbonate
Head Material
Plastic
Action
Momentary

Description

Flush Push Button, Momentary, Head Material Plastic, Bezel Material Silver, IP Rating IP67, IP69K, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
