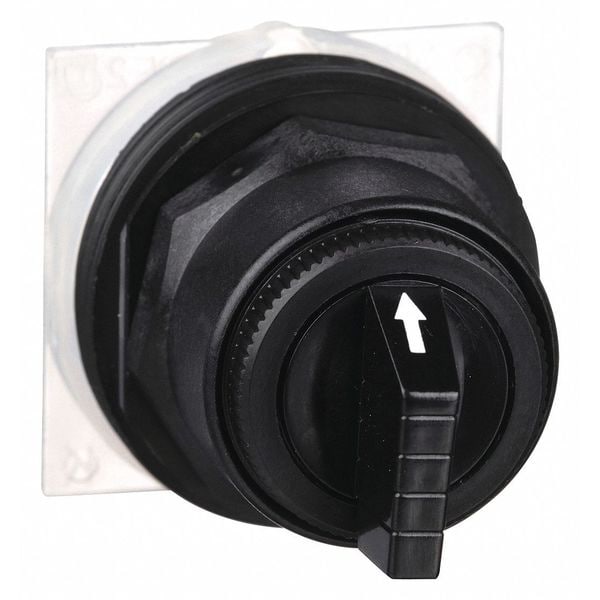

Schneider Electric Non-Illum Selector Swtch, 30mm, 3 Pos, Levr 9001SKS43B - main

Non-Illum Selector Swtch, 30mm, 3 Pos, Levr

  • Mfr # 9001SKS43B

  • Zoro # G3498546

product price: $57.89
/ea

Key Features

Color
Black
Operator Head Material
Plastic
Basic Material
Plastic
Bezel Color
Black
Cam
C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKS43B
Zoro #
G3498546
UPC #
785901524373
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
30 mm

Details

Item
Short-Handled Selector Switch
Color
Black
Operator Head Material
Plastic
Basic Material
Plastic
Bezel Color
Black
Cam
C
Switch Operation @ Position A
XOXO
Key Removal
No Key
Position
3
Switch Operation @ Position C
OXOX
Switch Operation @ Position B
OOOO
Type of Operator
Lever
Standards
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
NEMA Rating
12, 13, 3, 3R, 4, 4X
Switch Operation @ Position D
No Fourth Position
IP Rating
IP66
Operator Color
Black
Key Number
No Key
Bezel Material
Plastic
Action
Maintained/Maintained/Maintained
Number of Positions
3
Ambient Air Temperature For Operation
-25-70°C
Device Short Name
9001SK
Electrical Shock Protection Class
class II IEC 61140
Device Presentation
basic element
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
UL listed file E42259 CCN NKCR || CE || CSA LR24590 class 3211 03
Protective Treatment
TC
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Contacts Type And Composition
without contact block
Ip Degree Of Protection
IP66 IEC 60529
Product Or Component Type
head for selector switch
Operator Position Information
3 positions
Operator Head Color
Black
Operator Illumination
Non-Illuminated
Hazardous Location Specification
Not Rated
Operator Head Type
Short-Handled Knob
Switch Function @ 4th Position
No Fourth Position
Series
9001SK
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Short-Handled Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, Lever Type of Operator, Operator Color Black, Key Removal No Key, Operator Head Material Plastic, Bezel Material Plastic, Bezel Color Black, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP66, Cam C, Standards CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR, Key Number No Key
