Shop EATON

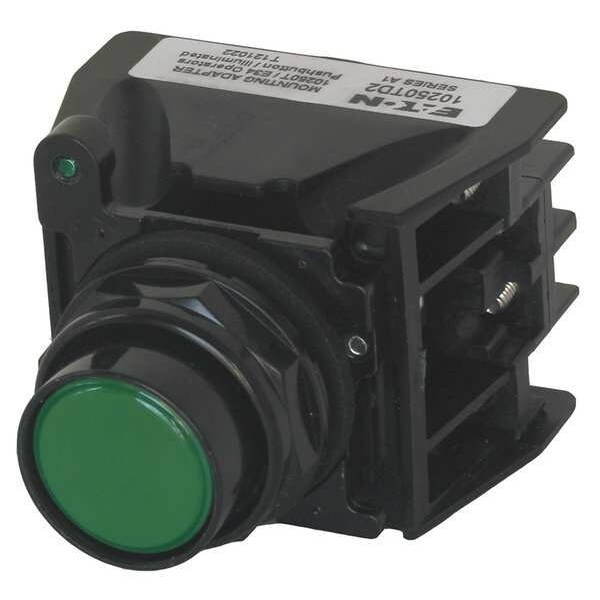

Hazardous Location Push Button, 30 mm, 1NO/1NC, Green

  • Mfr # E34EX706G
  • Zoro # G8736621
product price:
$
192.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
E34EX706G
Zoro #
G8736621
UPC #
782114524329
Country of Origin
Dominican Republic
Item
Hazardous Location Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Epoxy Coated Metal
Terminal Connection
Screw Clamp
Standards
CE, CSA, FDA 3-A, UL 505
Safety Rating
FDA Approved 3A Sanitary Chemical Requirements, Class 1, Div 2, Groups B,C, D (NEC), Class 1, Zone 2, IIB and H2 (NEC 505)
Bezel
Epoxy Coated/Chemical Resistant Metal
Includes
Drainage Holes to Prevent Moisture Build-Up, Grounding Nibs Designed to Bite Through Most Enclosure Coatings
IP Rating
IP65
NEMA Contact Rating Designation
A600 and Q300
Type of Operator
Flush Push Button
Contact Form
1NO/1NC
Color
Green
Number of Operators
1
Contact Rating
10A @ 600V AC, 2.5A @ 250V DC
NEMA Rating
12, 13, 3, 3R, 4, 4X
Features
Factory Sealed, Drainage Holes, Grounding Nibs
Bezel Material
Zinc Die Cast
Rating
NEC Class I Division 2, Groups B, C and D
AC Contact Rating
10 A @ 600 V
DC Contact Rating
2.5 A @ 250 V
Series
E34
Type
Pushbutton
Mounting method
Flush
Compliances
FDA 3-A
Actuator Material
Plastic
Certifications
UL 505
Contact configuration
1 NO-1 NC
Illumination
Non-illuminated
Actuator Color
Green
Operating mode
Momentary
Product Name
Eaton E34 pushbutton
Hazardous Location Specification
Class I, Div 2, Group B, C, D
Product Type
Push Button Operators
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
32 Degrees F
Number of Indicator Lights
0
Operator Material
Metal
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Resistance Properties
Corrosion Resistant, Oil and Grease Resistant
Mechanical Operating Durability
1.00 x 10^7

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Product Length/Depth
3 in
Product Height
2 in
Product Width
2 in
Overall Width
2 in
Overall Depth
3 in
Overall Height
2 in
Manufacturer Warranty Length
1 yr
Fits Chest Size
Factory Sealed, Drainage Holes, Grounding Nibs

Description

Hazardous Location Push Button, 30 mm, Momentary Action, Flush Push Button Type of Operator, Head Material Epoxy Coated Metal, Contact Form 1NO/1NC, Bezel Epoxy Coated/Chemical Resistant Metal, Color Green, Contact Rating 10A @ 600V AC, 2.5A @ 250V DC, NEMA Contact Rating Designation A600 and Q300, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, FDA 3-A, UL 505, Terminal Connection Screw Clamp, Features Factory Sealed, Drainage Holes, Grounding Nibs
