Shop All Overload Relays
Schneider Electric

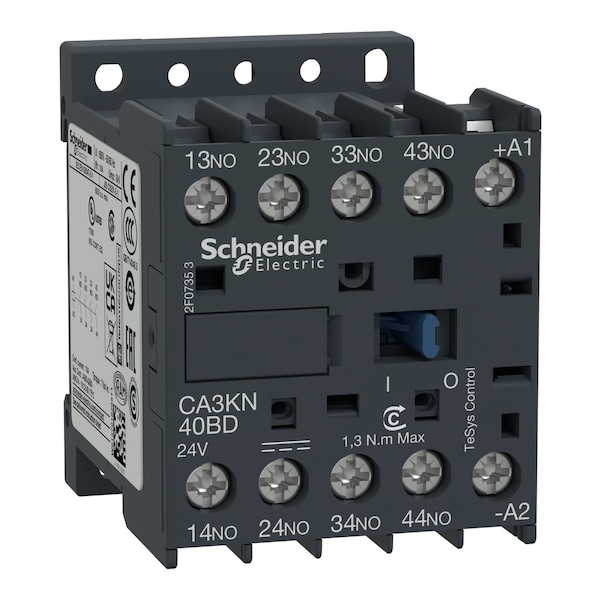

Control Relay 600Vac 10Amp Iec +Options

product price: $54.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Width 45 mm
  • Height 58 mm
  • Depth 57 mm
  • Standards EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1
  • Insulation Resistance > 10 MOhm
See all product information

Product Information

Dimensions

Width 45 mm
Height 58 mm
Depth 57 mm

Details

Item Control Relay 600Vac 10Amp Iec +Options
Standards EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1
Insulation Resistance > 10 MOhm
Product Name TeSys CAK
Mounting Support plate || rail
Product Or Component Type control relay
Control Circuit Voltage Limits operational 0.8 to 1.15 Uc 50°C) || drop-out 0.1 to 0.75 Uc 50°C)
Immunity To Microbreaks 2 ms
Minimum Switching Voltage 17 V
Irms Rated Making Capacity 110 A IEC 60947
Control Circuit Type DC standard
Minimum Switching Current 5 mA
Ip Degree Of Protection IP2X
[Ue] Rated Operational Voltage <= 690 V <= 400 Hz
Contactor Application control circuit
Tightening Torque 1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals Philips No 2 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2
Mechanical Durability 20 Mcycles
Product Certifications CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
Ambient Air Temperature For Operation -25-50°C
Flame Retardance V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102
Hold-In Power Consumption In W 3-3 W 20°C
Operating Altitude 6561.68 ft (2000 m) without derating
Operating Time 10 ms coil de-energisation and NO opening || 30 to 40 ms coil energisation and NO closing
Device Short Name CA3K
[Ui] Rated Insulation Voltage 690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14
Associated Fuse Rating 10 A gG IEC 60947 || 10 A gG VDE 0660
Mechanical Robustness vibrations contactor open2 Gn, 5 to 300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5 to 300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
Inrush Power In W 3-3 W 20°C)
Ambient Air Temperature For Storage -50-80°C
Heat Dissipation 3-3 W
Utilisation Category AC-15 || DC-13
Non Overlap Distance 0.5 mm
Maximum Operating Rate 10000 cyc/h
Connections - Terminals screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible with cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-1.5 mm²flexible with cable end || screw clamp terminals 2 0.34-1.5 mm²flexible without cable end
[Ith] Conventional Free Air Thermal Current 10 A 50°C
Protective Treatment TC IEC 60068
Pole Contact Composition 4 NO
Range TeSys
[Uc] Control Circuit Voltage 125 V DC

Description

Control Relay 600Vac 10Amp Iec +Options
