  15. Hazardous Location Push Button, 30 mm, 1NO/1NC, Red

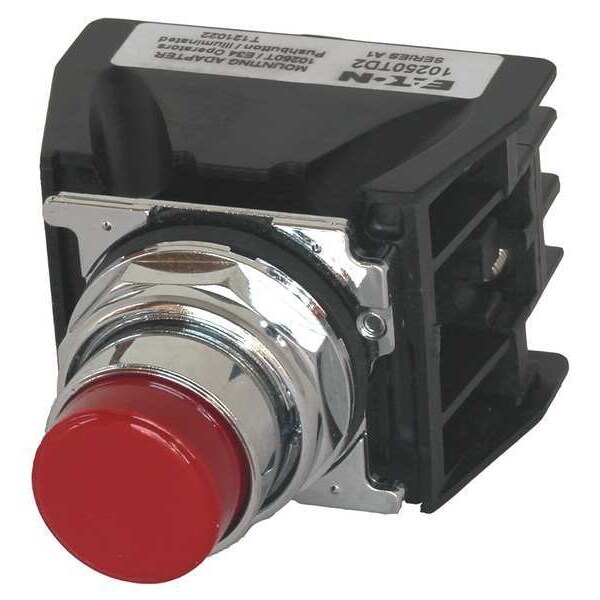

Eaton Hazardous Location Push Button, 30 mm, 1NO/1NC, Red 10250T708R - main

Hazardous Location Push Button, 30 mm, 1NO/1NC, Red

  • Mfr # 10250T708R

  • Zoro # G8736673

product price: $175.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T708R
Zoro #
G8736673
UPC #
782114504543
Country of Origin
United States

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Product Length/Depth
1 in
Product Height
1 in
Product Width
1 in
Manufacturer Warranty Length
1 yr
Overall Depth
1 in
Overall Height
1 in
Overall Width
1 in

Details

Item
Hazardous Location Push Button
Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, CSA C22.2 No.213-M198, CSA LR20713, CSA LR68551, UL 1604, UL 508, UL E10323, UL E131568
Contact Form
1NO/1NC
Type of Operator
Extended Push Button
Safety Rating
Class 1, Div 2, Groups B,C, D (NEC), Class 1, Zone 2, IIB and H2 (NEC 505)
Includes
Drainage Holes to Prevent Moisture Build-Up, Grounding Nibs Designed to Bite Through Most Enclosure Coatings
NEMA Contact Rating Designation
A600 and Q300
NEMA Rating
12, 13, 3, 3R, 4, 4X
Contact Rating
10A @ 600V AC, 2.5A @ 250V DC
Color
Red
IP Rating
IP65
Number of Operators
1
Bezel
Metal
Features
Factory Sealed, Drainage Holes, Grounding Nibs
Legend
Blank
Bezel Material
Zinc Die Cast
AC Contact Rating
10 A @ 600 V
Series
10250T
Type
30.5 mm, Class I Division 2
DC Contact Rating
2.5 A @ 250 V
Rating
NEC Class I Division 2, Groups B, C and D
Contact configuration
1 NO-1 NC
Actuator Material
Plastic
Actuator
Extended
Operating mode
Momentary
Illumination
Non-illuminated
Actuator Color
Red
Product Name
Eaton 10250T pushbutton
Operating Temperature - Minimum
32 Degrees F
Mechanical Operating Durability
1.00 x 10^7
Number of Indicator Lights
0
Product Type
Push Button Operators
Operator Material
Metal
Hazardous Location Specification
Class I, Div 2, Group B, C, D
Resistance Properties
Oil and Grease Resistant
Operating Temperature - Maximum
140 Degrees F
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X

Description

Hazardous Location Push Button, 30 mm, Momentary Action, Extended Push Button Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Metal, Color Red, Contact Rating 10A @ 600V AC, 2.5A @ 250V DC, NEMA Contact Rating Designation A600 and Q300, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CSA C22.2 No.14, CSA C22.2 No.213-M198, CSA LR20713, CSA LR68551, UL 1604, UL 508, UL E10323, UL E131568, Terminal Connection Screw Clamp
