  15. Hazardous Location Push Button, 30 mm, 2NO/2NC, Green

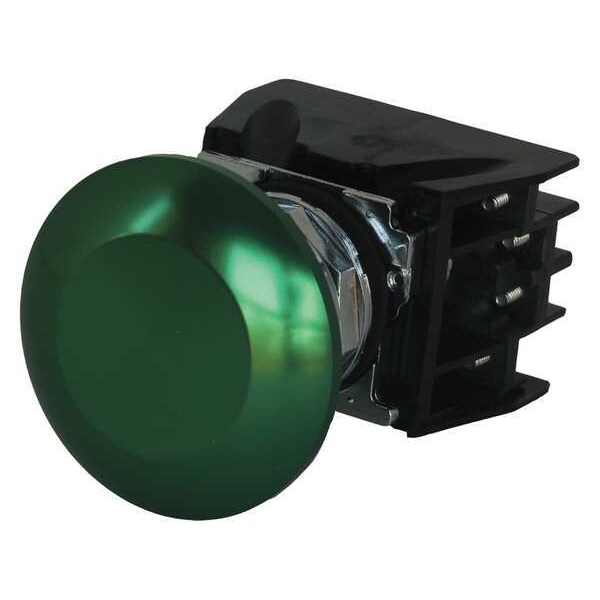

Eaton Hazardous Location Push Button, 30 mm, 2NO/2NC, Green 10250T713G - main

Hazardous Location Push Button, 30 mm, 2NO/2NC, Green

  • Mfr # 10250T713G

  • Zoro # G8736953

product price: $363.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T713G
Zoro #
G8736953
UPC #
782114504932
Country of Origin
United States

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
65 mm
Size
30 mm
Product Width
1 in
Product Length/Depth
1 in
Product Height
1 in
Product Diameter
2.5 in
Overall Width
1 in
Overall Depth
1 in
Overall Height
1 in
Manufacturer Warranty Length
1 yr

Details

Item
Hazardous Location Push Button
Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CE, CSA, UL Listed
Contact Form
2NO/2NC
Bezel
Metal
Color
Green
Contact Rating
10A @ 600V AC, 2.5A @ 250V DC
Type of Operator
Jumbo Mushroom Head Push Button
Includes
Drainage Holes to Prevent Moisture Build-Up, Grounding Nibs Designed to Bite Through Most Enclosure Coatings
NEMA Contact Rating Designation
A600 and Q300
IP Rating
IP65
Number of Operators
1
Safety Rating
Class 1, Div 2, Groups B,C, D (NEC), Class 1, Zone 2, IIB and H2 (NEC 505)
NEMA Rating
12, 13, 3, 3R, 4, 4X
Features
Factory Sealed, Drainage Holes, Grounding Nibs
Bezel Material
Zinc Die Cast
Legend
Blank
Rating
NEMA 4X
AC Contact Rating
10 A @ 600 V
Type
Pushbutton
DC Contact Rating
2.5 A @ 250 V
Series
10250T
Contact configuration
2 NO-2 NC
Illumination
Non-illuminated
Operating mode
Momentary
Actuator Color
Green
Actuator Material
Anodized aluminum
Bus material
Zinc die cast
Compliances
CE Marked
Actuator
Jumbo mushroom
Certifications
UL Listed
Product Name
Eaton 10250T pushbutton
Resistance Properties
Oil and Grease Resistant
Operator Material
Metal
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Number of Indicator Lights
0
Operating Temperature - Minimum
32 Degrees F
Operating Temperature - Maximum
140 Degrees F
Hazardous Location Specification
Class I, Div 2, Group B, C, D
Mechanical Operating Durability
1.00 x 10^7
Product Type
Push Button Operators

Description

Hazardous Location Push Button, 30 mm, Momentary Action, Jumbo Mushroom Head Push Button Type of Operator, Head Material Metal, Contact Form 2NO/2NC, Bezel Metal, Color Green, Contact Rating 10A @ 600V AC, 2.5A @ 250V DC, NEMA Contact Rating Designation A600 and Q300, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Factory Sealed, Drainage Holes, Grounding Nibs
