  15. Heavy Duty Limit Switch, No Lever, Rotary, 1NC/1NO, 10A at 600V AC, Actuator Location: Side

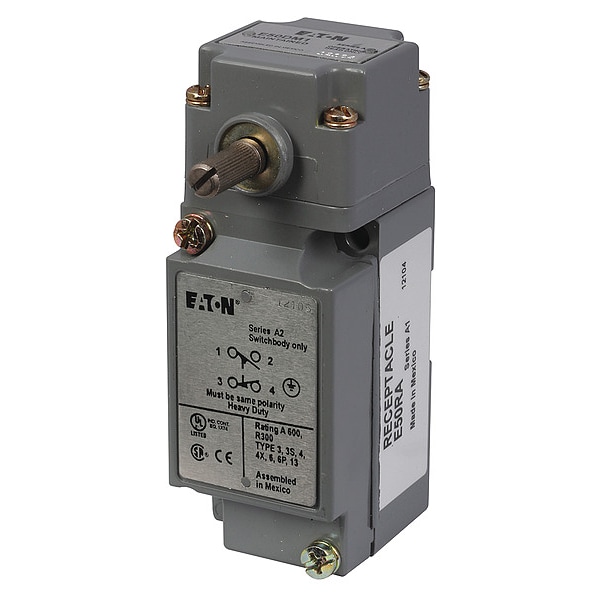

Eaton Heavy Duty Limit Switch, No Lever, Rotary, 1NC/1NO, 10A at 600V AC, Actuator Location: Side E50AM1 - main

Heavy Duty Limit Switch, No Lever, Rotary, 1NC/1NO, 10A at 600V AC, Actuator Location: Side

  • Mfr # E50AM1

  • Zoro # G5232254

product price: $474.59
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E50AM1
Zoro #
G5232254
UPC #
782113343921
Country of Origin
Mexico

Dimensions

Height
1.09"
Actuator Length
1.54"
Depth
2.46"
Body Width - Limit Switch
1.54 in
Body Height - Limit Switch
3.13 in
Body Depth - Limit Switch
1.78 in
Actuator Length - Limit Switch
1.54 in
Width
1.54"
Product Length/Depth
4.22 in
Product Height
2.46 in
Manufacturer Warranty Length
1 yr
Overall Height
2.46 in
Mounting Hole Diameter
0.2 in
Overall Depth
4.22 in
Body Depth
1.78 in
Body Height
3.13 in
Body Width
1.54 in
Overall Width
1.54 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Travel
Operating Travel 50 Degrees , Reset Travel 50 Degrees , Total Travel 90 Degrees
Mounting Hole - Limit Switch
(2) 0.20 in dia
Body Style (Limit Switch)
Standard
Boot Sealed Actuator - Limit Switch
No
Actuator Location
Side
IP Rating
67
Actuator Location (Limit Switch)
Side
Electrical Connection
Screw Terminals
Contact Form - Limit Switch
1NC/1NO
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
Movement
Rotary
Basic Actuator Style (Limit Switch)
Rotary
Operating Temp. Range
14 Degrees to 250 Degrees F
Amps
10
Boot Sealed Actuator (Limit Switch)
No
Voltage Rating
600VAC
AC Contact Rating
10A at 600V
Standards
CE, CSA, UL
NEMA Rating
3, 3S, 4X, 6P
Stem Thread - Limit Switch
No Stem
Wiring Entry
1/2 in NPT
Limit Switch Style
Heavy Duty Limit Switch
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Series
E50
Contact Form
1NC/1NO
DC Contact Rating
1 A @ 250 V
Actuator Style (Limit Switch)
Rotary, No Lever
Operating Force
3.0 in-lb
Actuator Style
Rotary Head, No Lever, Maintained
Body Material
Zinc
Differential Travel
90 Degrees
Connection Type
Screw terminal
Certification
UL Listed
Weight
.41 lb
Operating Temperature - Min
14 °F
Certifications
UL Listed;CSA Certified
Actuator
Side rotary, maintained two-position
Contact Rating
10A at 240 Vac, 1A at 250 Vdc
Type
Assembly
Environmental Rating
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Product Name
Eaton E50 NEMA heavy duty plug-in limit switch
Maximum AC Current
10 A continuous
Maximum DC Current
1A
Enclosure Material
Die cast zinc
Contact Configuration
1 NO-1 NC
Operating Temperature - Max
201 °F
Mounting Hole Vertical Center to Center Distance
29 mm
Operating Temperature - Maximum
201 Degrees F
Operating Temperature - Minimum
14 Degrees F
Total Travel
90 Degrees
NEMA Enclosure Rating
1, 13, 3, 3S, 4, 4X, 6, 6P
Lamp Type
No Lamp Module Included
Includes Actuator
No Actuator Included
Body Configuration
Plug-In
Action
Maintained/Maintained
Operating Torque - Maximum
3 in-lb
Reset Travel
50 Degrees
Operating Force - Minimum
8 ozf
Operating Force - Maximum
5 lbf
Directional Movement
CCW/CW
Mounting Hole Horizontal Center to Center Distance
59 mm
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2
Pretravel
5 Degrees
Mounting Style
Surface
Overtravel
90 Degrees
Roller Position
Side

Description

Plug-In Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.54 in, Body Height - Limit Switch 3.13 in, Body Width - Limit Switch 1.54 in, Body Depth - Limit Switch 1.78 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 3, 3S, 4X, 6P
