  6. Horn Strobe, White, 0.480A, Wall Mnt

This item is Discontinued.

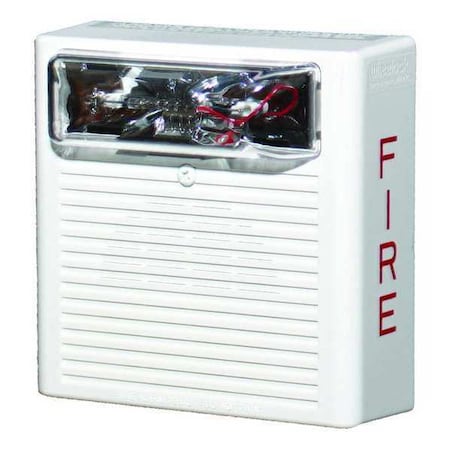

Eaton Horn Strobe, White, 0.480A, Wall Mnt CN125717

Horn Strobe, White, 0.480A, Wall Mnt (Discontinued)

  • Mfr # CN125717
  • Zoro # G4703660
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CN125717
Zoro #
G4703660
UPC #
786697257179
Country of Origin
United States

Dimensions

Width
6 in
Height
6 in
Diameter
6 in
Depth
3 in
Overall Length
3 in
Overall Depth
3 in
Overall Width
6 in

Details

Item
Horn Strobe
Standards
CSFM Compliant, FM, UL Listed, ULC
Mounting
Wall
Indoor/Outdoor
Indoor, Outdoor
Voltage
24V DC
Vibrating
No
Housing Material
Plastic
Lens Color
Clear
Lens Material
Polycarbonate
Operating Temp.
-40 Degrees to 150 Degrees F
Lens Design
Strobe Tube
Current Drawn
0.480 A
Audible Alarm Type
Horn
Sound Pattern
Continuous/Pulse
Housing Color
White
Decibels
99 dB
Lamp Type
Xenon
Visual Indicator Type
Strobe
Flashes per Minute
60
Light Output
75 CP
Product Type
Horn and Strobe
Power Source
Wire
Features
Settings can be Set without the use of a Tool and are Located Behind the Appliance to Prevent Tampering, These Horns Feature a Bright Illuminating Strobe to Alert you to Fire and Potential Hazards
Vibration
No Vibration
Wattage
5 W
Operating Current
0.480 A
Sound Style
Horn
Operating Temperature - Minimum
-40 Degrees F
For Location
Indoor, Outdoor
Number of Sound Patterns
2
Operating Temperature - Maximum
150 Degrees F
Light Operating Mode
Strobe
Light Intensity
75 CP
Sound Continuity
Continuous
Light Source
Xenon
Control Protocol
Direct Wire
Brightness Selection
Fixed Brightness

Description

Horn Strobe, Lens Color Clear, Voltage 24VDC, Current Drawn 0.480 A, Sound Level 99dB, Height 6 In., Width 6 In., Depth 3 In., Diameter 6 In., Housing Color White, Lens Material Polycarbonate, Housing Material Plastic, Lens Design Strobe Tube, Light Output 75 CP, Flashes per Minute 60, Lamp Type Xenon, Mounting Wall, Operating Temp. -40 Degrees to 150 Degrees F, Standards UL, ULC, FM, CSFM
