  13. IEC Miniature Magnetic Contactor, 1NO, 480V AC, 3 P, Non-Reversing, Screw

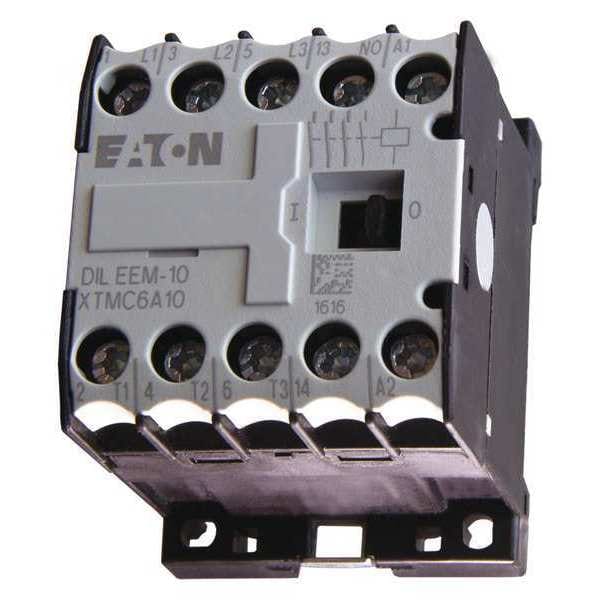

Eaton IEC Miniature Magnetic Contactor, 1NO, 480V AC, 3 P, Non-Reversing, Screw XTMC6A10C - main

IEC Miniature Magnetic Contactor, 1NO, 480V AC, 3 P, Non-Reversing, Screw

  • Mfr # XTMC6A10C

  • Zoro # G1933863

product price: $51.19
/ea

Key Features

Auxiliary Contact Form
1NO
Coil Voltage
480V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XTMC6A10C
Zoro #
G1933863
UPC #
786685363936
Country of Origin
Germany

Dimensions

Product Length/Depth
2.5 in
Overall Width
2.5 in
Overall Depth
2.5 in
Frame Size
A
Overall Height
2 in
Mounting Hole Distance - Height
1.98 in
Mounting Hole Distance - Width
1.38 in
Mounting Hole Diameter
0.16 in

Details

Item
IEC Miniature Magnetic Contactor
Auxiliary Contact Form
1NO
Coil Voltage
480V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
1
Standards
CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
Reversing
No
HP @ 3 Phase - 575V
3 hp
HP @ 1 Phase - 230V
3/4
Frame / Series / Class / Code
Frame A
Enclosure NEMA Rating
No Enclosure
Series
XT
Type
Full voltage non-reversing mini contactor
IP Rating
IP20
Contact Configuration
1 NO
Compliances
CE Marked
Product Name
Eaton XT IEC mini contactor
Amperage Rating
6.60A
Horsepower @ Single Phase - 240V AC
3/4 hp
Horsepower @ Three Phase - 208V AC
1 1/2 hp
Mounting Style
DIN Rail, Panel
Horsepower @ Single Phase - 120V AC
1/4 hp
Response Time
14 msec (AC Coil Closing Delay Min), 15 msec (DC Coil Opening Delay min), 18 msec (AC Coil Opening Delay Max), 21 msec (AC Coil Closing Delay Max), 25 msec (DC Coil Opening Delay Max), 26 msec (DC Coil Closing Delay Min), 35 msec (DC Coil Closing Delay Max), 8 msec (AC Coil Opening Delay min)
Frequency
50/60 Hz
Maximum Operating Temperature
122 Degrees F
NEMA Enclosure Rating
No Enclosure
Embedded Surge Suppressor
Yes
Maximum Voltage Rating
690V AC/DC
Full Load Current - Inductive
6:00 AM
Mechanical Operating Durability
10,000,000
Includes Auxiliary Contacts
Yes
Minimum Operating Temperature
-13 Degrees F
Contactor Style
IEC
Full Load Current - Resistive
20 A
Mounting Postion
Vertical
Horsepower @ Three Phase - 600V AC
3 hp
Horsepower @ Three Phase - 480V AC
3 hp
Horsepower @ Three Phase - 240V AC
2 hp

Description

The Eaton XT IEC Miniature Magnetic Contactor is a compact, electrically operated switch for controlling low-power IEC circuits. It uses an electromagnetic coil to open or close contacts, enabling control of small motors and lighting. Its footprint and IEC XT design support mounting in space-constrained control panels and DIN-rail assemblies. It is rated for non-reversing operation within specified parameters.

Action: Rated for non-reversing operation within specified parameters

  • Poles and contacts: 3 poles; 1 NO auxiliary contact
  • Coil Voltage: Designed for operation at specified coil voltage (e.g., 480V AC)
  • Maximum voltage rating: Rated for operation up to specified maximum voltage (e.g., 690V AC/DC)
  • Amperage ratings: Rated for continuous current within specified ranges; actual performance may vary based on application conditions
  • Reversing: Designed as a non-reversing device according to its specifications
  • Mounting: Compatible with standard mounting methods such as DIN rail or panel mount within the recommended orientation
  • Electrical connection: Equipped with screw terminals suitable for wiring within rated parameters
  • Embedded surge suppressor: Contains built-in surge suppression components rated per manufacturer specifications but does not guarantee protection against all surges or damage from electrical disturbances
  • Enclosure/IP rating: Provided without enclosure; IP20 according to standards but not intended for harsh environmental exposure
  • Frame/Series: Part of designated series/frame types as per manufacturer documentation
  • Certifications: Meets certain certification standards but does not imply suitability or safety under all conditions or guarantees compliance beyond testing scope
  • Mechanical durability: Specified mechanical endurance based on testing conditions but actual lifespan may vary depending on usage environment
  • Operating temperature: Intended operating temperature range based on specifications—performance outside this range cannot be guaranteed
  • Dimensions: 2.5 in W x 2 in H x 2.5 in D
