- Item

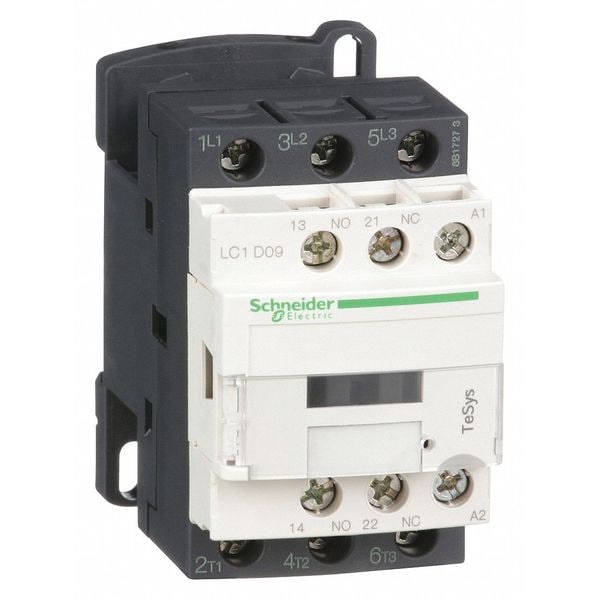

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 240V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 9 A
- Full Load Amps-Resistive
- 20 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
- HP @ 3 Phase - 575V
- 7 1/2 hp
- Frame / Series / Class / Code
- TeSys
- Reversing
- No
- HP @ 1 Phase - 230V
- 1
- Enclosure NEMA Rating
- No Enclosure
- Series
- TeSys Deca
- Control Circuit Voltage Limits
- Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
- Mechanical Durability
- 15 Mcycles
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Fuse Amps
- 10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit)
- Rated Insulation Volts
- 600/690V
- Operating Time
- 12 to 22 ms (Closing), 4 to 19 ms (Opening)
- Electrical Durability
- 0.6 Mcycles (25 A, AC-1, Less than 440 V); 2 Mcycles (9 A, AC-3, Less than 440 V); 2 Mcycles (9 A, AC-3e, Less than 440 V)
- Rated Short-Time Withstand Current
105 A (at 40 Degrees C for 10 s Power Circuit), 210 A (at 40 Degrees C for 1 s Power Circuit), 30 A (at 40 Degrees C for 10 min Power Circuit), 61 A (at 40 Degrees C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Overvoltage Category
- CAT III
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- Inrush VA
- 70 VA
- Operating Speed
- 3600 cycles per hr
- IP Rating
- IP20
- Watts Loss
- 2 to 3W
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Hold VA
- 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
- Includes Protective Cover
- Yes
- Rated Making Capacity
- 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
- Max. Operating Watts
2.2 kW (at 220 to 230V AC 50/60 Hz AC-3), 4 kW (at 380 to 400V AC 50/60 Hz AC-3), 4 kW 415 to (at 440V AC 50/60 Hz AC-3), 5.5 kW (at 500V AC 50/60 Hz AC-3), 5.5 kW (at 660 to 690V AC 50/60 Hz AC-3), 2.2 kW (at 400V AC 50/60 Hz AC-4), 2.2 kW (at 220 to 230V AC 50/60 Hz AC-3e), 4 kW (at 380 to 400V AC 50/60 Hz AC-3e), 4 kW 415 to (at 440V AC 50/60 Hz AC-3e), 5.5 kW (at 500V AC 50/60 Hz AC-3e), 5.5 kW (at 660 to 690V AC 50/60 Hz AC-3e)
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Signalling Circuit Frequency
- 25 to 400 Hz
- Features
- Without Built-In Suppressor Module
- Fire Rating
- UL 94 V1
- Impulse Withstand Voltage
- 6 kV
- Switching Current
- 5 mA (Signalling Circuit)
- Switching Voltage
- 17 V (Signalling Circuit)
- Application
- Motor Control, Resistive Load
- Impedance
- 2.5 mOhm
- Net Weight
- 0.32 kg
- Tightening Torque
- 1.7 Nm
- Non-Overlap Time
- 1.5 ms
- Rated Breaking Capacity
- 250 A @ 440V
- Horsepower @ Single Phase - 240V AC
- 1 hp
- Contactor Style
- IEC
- Mechanical Operating Durability
- 15,000,000
- Horsepower @ Three Phase - 600V AC
- 7 1/2 hp
- Embedded Surge Suppressor
- No
- Horsepower @ Three Phase - 240V AC
- 2 hp
- Horsepower @ Single Phase - 120V AC
- 1/3 hp
- Full Load Current - Resistive
- 20 A
- Horsepower @ Three Phase - 480V AC
- 5 hp
- Full Load Current - Inductive
- 9 A
- Includes Auxiliary Contacts
- Yes
- Electrical Operating Durability
- 2,000,000, 600,000
- Number of Normally Open Main Contacts
- 3
- Maximum Operating Temperature
- 140 Degrees F
- Minimum Operating Temperature
- -40 Degrees F
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Phase
- Three
- Frequency
- 50/60 Hz
- NEMA Enclosure Rating
- No Enclosure
- Maximum Voltage Rating
- 690V AC
- Horsepower @ Three Phase - 208V AC
- 2 hp
- Mounting Style
- DIN Rail, Plate
- Conventional Free Air Thermal Current
- 25 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)
