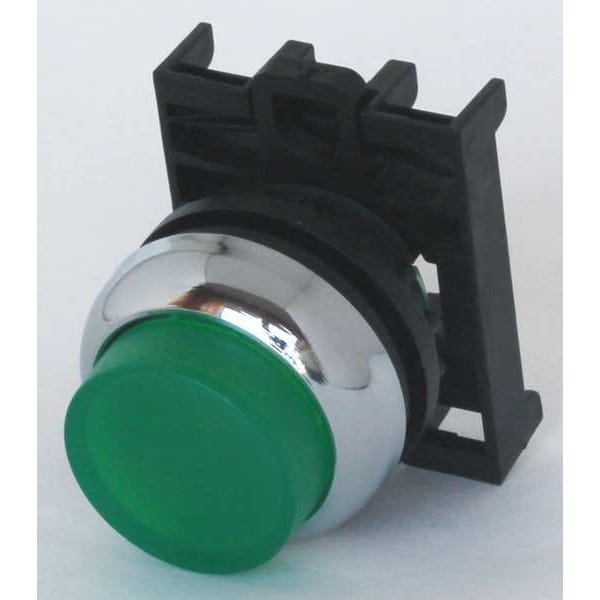

Eaton Illum Push Button Operator, 22mm, Green M22M-DLH-G - main

Illum Push Button Operator, 22mm, Green

  • Mfr # M22M-DLH-G

  • Zoro # G6178891

product price: $17.79
/ea

Key Features

Color
Green
NEMA Rating
1, 13, 2, 3, 4, 4X
Lamp Module Type
No Lamp Module Included
Lamp Module Voltage
Module Not Included
Lamp Voltage
Dependent on Module Used
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22M-DLH-G
Zoro #
G6178891
UPC #
786685899039
Country of Origin
Germany

Dimensions

Size
22 mm
Product Width
.39 in
Product Height
1.17 in
Product Length/Depth
1.17 in
Overall Width
0.39 in
Overall Height
1.17 in
Manufacturer Warranty Length
1 yr
Overall Depth
1.17 in
Panel Cutout Diameter
22 mm

Details

Item
Flush Push Button
Color
Green
NEMA Rating
1, 13, 2, 3, 4, 4X
Lamp Module Type
No Lamp Module Included
Lamp Module Voltage
Module Not Included
Lamp Voltage
Dependent on Module Used
Type of Operator
Extended Button
Action
Momentary
Basic Material
Metal
IP Rating
IP67, IP69K
Terminal Connection
Screw Clamp
Head Material
Plastic
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Lamp Type
LED
Bezel
Chrome Die Cast Aluminum
Features
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Type
22.5 mm RMQ-Titan Modular
Application
Pushbutton
Bezel Material
Metal
Number of Operators
1
Actuator
Flush
Environmental rating
IP67, IP69K (IP66 key-release)
Special Features
M22 series
Illumination
Illuminated
Certifications
Contact Manufacturer
Enclosure
NEMA 13
Actuator function
Momentary
Series
M22
Operating Mode
Momentary
Product Name
Eaton M22 modular pushbutton
Push Button Style
Flush
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Head Color
Green
NEMA Enclosure Rating
13, 4X
Operator Material
Polycarbonate
Resistance Properties
Corrosion Resistant
Operator Illumination
Illuminated
Hazardous Location Specification
Not Rated
Product Type
Push Button Operators
Number of Indicator Lights
1

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Extended Button, Basic Material Metal, Head Material Plastic, Bezel Material Metal, Color Green, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP67, IP69K, Legend Not Applicable, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
