Shop All Push Button Accessories
Eaton

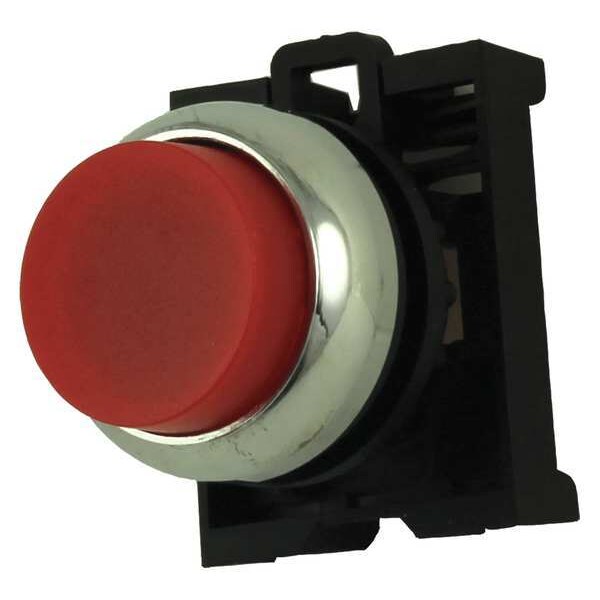

Illum Push Button Operator, 22mm, Red

original price: $21.56
41% off
new price: $12.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 22 mm
  • Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
  • Color Red
  • Head Material Plastic
  • Lamp Type LED
See all product information

Product Information

Dimensions

Size 22 mm
Product Length/Depth 1.17 in
Product Height 1.17 in
Product Width .39 in
Panel Cutout Diameter 22 mm
Overall Depth 1.17 in
Manufacturer Warranty Length 1 yr
Overall Height 1.17 in
Overall Width 0.39 in

Details

Item Flush Push Button
Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Color Red
Head Material Plastic
Lamp Type LED
Bezel Chrome Die Cast Aluminum
Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
IP Rating IP67, IP69K
Lamp Module Type No Lamp Module Included
Basic Material Metal
Terminal Connection Screw Clamp
Lamp Module Voltage Module Not Included
Lamp Voltage Dependent on Module Used
NEMA Rating 1, 13, 2, 3, 4, 4X
Action Momentary
Type of Operator Extended Button
Application Pushbutton
Type 22.5 mm RMQ-Titan Modular
Bezel Material Metal
Number of Operators 1
Actuator Flush
Actuator function Momentary
Certifications Contact Manufacturer
Enclosure NEMA 13
Operating Mode Momentary
Series M22
Environmental rating IP67, IP69K (IP66 key-release)
Illumination Illuminated
Special Features M22 series
Product Name Eaton M22 modular pushbutton
Resistance Properties Corrosion Resistant
Product Type Push Button Operators
Operating Temperature - Maximum 158 Degrees F
Push Button Style Flush
NEMA Enclosure Rating 13, 4X
Head Color Red
Number of Indicator Lights 1
Hazardous Location Specification Not Rated
Operator Material Polycarbonate
Operating Temperature - Minimum -13 Degrees F
Operator Illumination Illuminated

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Extended Button, Basic Material Metal, Head Material Plastic, Bezel Material Metal, Color Red, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP67, IP69K, Legend Not Applicable, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
