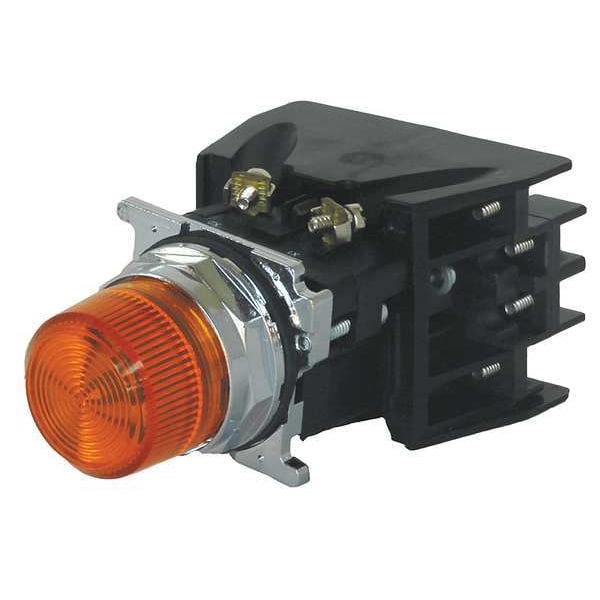

Eaton Illuminated Button w/Contacts, 24VAC/DC 10250T828AD24 - main

Illuminated Button w/Contacts, 24VAC/DC

  • Mfr # 10250T828AD24

  • Zoro # G8737041

product price: $306.99
/ea
Free Shipping & Returns

Key Features

Color
Amber
Action
Momentary
Type of Operator
Extended Illuminated
Lamp Type
LED
Head Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T828AD24
Zoro #
G8737041
UPC #
782114537862
Country of Origin
United States

Dimensions

Size
30 mm
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
1 yr

Details

Item
Illuminated Push Button
Color
Amber
Action
Momentary
Type of Operator
Extended Illuminated
Lamp Type
LED
Head Material
Metal
Contact Form
1NO/1NC
Terminal Connection
Screw Clamp
Bezel
Metal
Lamp Module Voltage
24V AC/DC
Lamp Module Type
Full Voltage
IP Rating
IP65
Number of Operators
1
Safety Rating
Class 1, Div 2, Groups B,C, D (NEC), Class 1, Zone 2, IIB and H2 (NEC 505)
NEMA Contact Rating Designation
A600 and Q300
Lamp Voltage
24V AC/DC
Contact Rating
10A @ 600V AC, 2.5A @ 250V DC
NEMA Rating
12, 13, 3, 3R, 4, 4X
Standards
CSA C22.2 No.14, CSA C22.2 No.213-M198, CSA LR20713, CSA LR68551, UL 1604, UL 508, UL E10323, UL E131568
Product Type
Push Button Operators
Series
10250T
Operator Material
Metal
Hazardous Location Specification
Class I, Div 2, Group B, C, D
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
32 Degrees F
Number of Indicator Lights
0
Mechanical Operating Durability
1.00 x 10^7
Lamp Voltage - Maximum
24 V AC/DC
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Bezel Material
Zinc Die Cast
DC Contact Rating
2.5 A @ 250 V
AC Contact Rating
10 A @ 600 V
Head Color
Amber
Operator Illumination
Illuminated
Resistance Properties
Oil and Grease Resistant
Push Button Style
Extended
Features
Factory Sealed, Drainage Holes, Grounding Nibs

Description

Illuminated Push Button, 30 mm, Momentary Action, Extended Illuminated Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Metal, Color Amber, Contact Rating 10A @ 600V AC, 2.5A @ 250V DC, NEMA Contact Rating Designation A600 and Q300, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CSA C22.2 No.14, CSA C22.2 No.213-M198, CSA LR20713, CSA LR68551, UL 1604, UL 508, UL E10323, UL E131568, Terminal Connection Screw Clamp
