Shop EATON

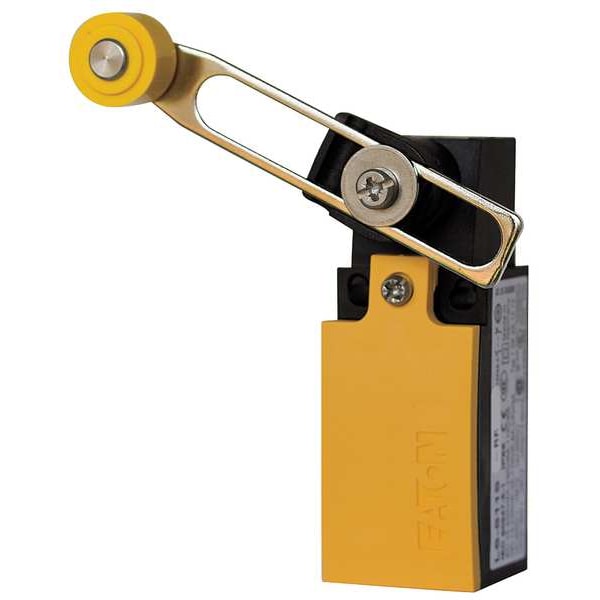

Limit Switch, Roller Lever, Rotary, 1NC/1NO, 4A at 400V AC, Actuator Location: Side

  • Mfr # LS-S11S-RLA
  • Zoro # G6653525
product price:
$
86.15
/ea

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
4A at 400V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-S11S-RLA
Zoro #
G6653525
UPC #
786685392752
Country of Origin
Germany

Dimensions

Body Depth - Limit Switch
1.32 in
Body Height - Limit Switch
2.53 in
Width
1.22"
Actuator Length
2.11"
Height
2.99"
Body Width - Limit Switch
1.22 in
Roller Dia.
18.0 mm
Actuator Length - Limit Switch
2.11 in
Depth
1.32"
Roller Width
0.71 in
Arm Width
0.4 in
Product Length/Depth
4.68 in
Body Width
1.22 in
Overall Height
1.32 in
Body Depth
1.32 in
Mounting Hole Diameter
4.06 mm
Overall Width
1.22 in
Manufacturer Warranty Length
1 yr
Overall Depth
4.68 in
Arm Length - Maximum
1.06 in
Body Height
2.53 in
Roller Diameter
0.7 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
4A at 400V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Boot Sealed Actuator (Limit Switch)
No
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Actuator Style (Limit Switch)
Rotary, Roller Lever
Basic Actuator Style (Limit Switch)
Rotary
Mounting Hole Spacing - Limit Switch
0.87 in
Operating Temp. Range
-13 Degrees to 158 Degrees F
Mounting Hole - Limit Switch
(2) 0.16 in dia
Movement
Horizontal
IP Rating
IP66, IP67
NEMA Rating
3, 3S, 4X, 6P
Actuator Style
Roller-Lever Arm
Limit Switch Style
General Purpose Limit Switch
Operating Force
0.2 N-m
DC Contact Rating
3 A @ 24 V
Series
LS-Titan
Travel
Operating Travel 55 Degrees , Reset Travel 5 Degrees , Total Travel 65 Degrees
Stem Thread - Limit Switch
No Stem
Voltage Rating
400V AC
Boot Sealed Actuator - Limit Switch
No
Electrical Connection
Screw Terminals
Actuator Location
Side
Body Style (Limit Switch)
Miniature
AC Contact Rating
6 A @ 230 V
Actuator Location (Limit Switch)
Side
Contact Form
1NO/1NC
Standards
RoHS, UL Listed
Contact Form - Limit Switch
1NC/1NO
Wiring Entry
M20 Thread
Amps
4
Arm Material
Metal
Connection Type
Screw terminal
Roller Material
Nylon
Differential Travel
65 Degrees
Body Material
Plastic
Certification
UL Listed
Weight
.2 lb
Operating Temperature - Max
158 °F
Operating Temperature - Min
-13 °F
Contact Rating
6A at 230 Vac, 3A at 24 Vdc
Type
LS-Titan
Operating Speed
149.96 cm/s
Contact Configuration
1 NO-1 NC with positive opening contact
Enclosure Material
Plastic
Maximum AC Current
6 A at 230 Vac
Actuator
Adjustable roller lever
Environmental Rating
IP66, IP67
Accuracy
±0.02mm
Product Name
Eaton LS-Titan miniature DIN limit switch
Maximum DC Current
3 A at 24 Vdc
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
3, 3S, 4X, 6P
Body Configuration
Plug-In
Operating Temperature - Maximum
158 Degrees F
Reset Travel
5 Degrees
Includes Actuator
Actuator Included
Operating Torque - Maximum
1.77 in-lb
Pretravel
55 Degrees
Operating Force - Minimum
1 N
Mounting Style
Surface
Boot Sealed Actuator
No Boot Included
Arm Adjustability
Adjustable
Operating Force - Maximum
8 N
Directional Movement
CCW/CW
Action
Momentary/Momentary
Plunger Adjustability
Adjustable
Mounting Hole Horizontal Center to Center Distance
22 mm
Roller Position
Side
Total Travel
65 Degrees
Number of Mounting Holes
2
Lamp Type
No Lamp Module Included
Roller Adjustability
Adjustable
Mounting Hole Vertical Center to Center Distance
43 mm
Reset Travel - Rotary
5 Degrees
Differential Travel - Rotary
65 Degrees
Total Travel - Rotary
65 Degrees
Pre-Travel - Rotary
55 Degrees

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 4A @ 400V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 2.11 in, Body Height - Limit Switch 2.53 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.32 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 3, 3S, 4X, 6P
