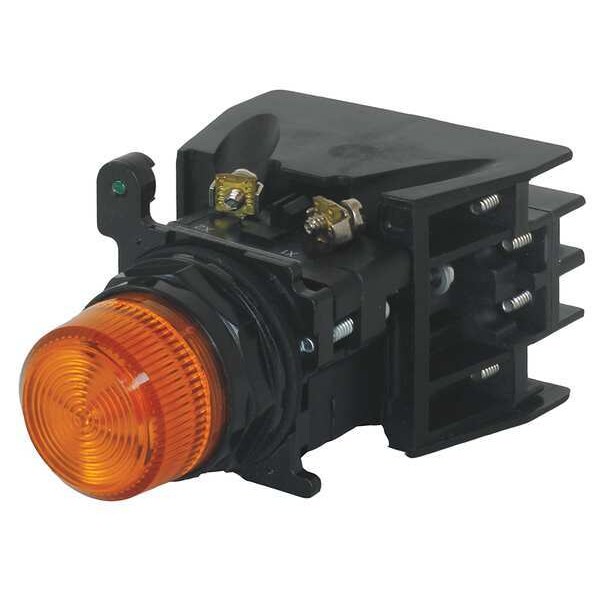

Eaton Illuminated Button w/Contacts, 24VAC/DC E34EX828AD24 - main

Illuminated Button w/Contacts, 24VAC/DC

  • Mfr # E34EX828AD24

  • Zoro # G8737102

product price: $298.99
/ea
Free Shipping & Returns

Key Features

Color
Amber
Action
Momentary
Lamp Type
LED
Type of Operator
Extended Illuminated
Head Material
Epoxy Coated Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E34EX828AD24
Zoro #
G8737102
UPC #
782114550755
Country of Origin
United States

Dimensions

Size
30 mm
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
1 yr

Details

Item
Illuminated Push Button
Color
Amber
Action
Momentary
Lamp Type
LED
Type of Operator
Extended Illuminated
Head Material
Epoxy Coated Metal
Terminal Connection
Screw Clamp
Contact Form
1NO/1NC
Bezel
Epoxy Coated/Chemical Resistant Metal
Lamp Module Voltage
24V AC/DC
Lamp Module Type
Full Voltage
Safety Rating
FDA Approved 3A Sanitary Chemical Requirements, Class 1, Div 2, Groups B,C, D (NEC), Class 1, Zone 2, IIB and H2 (NEC 505)
NEMA Rating
12, 13, 3, 3R, 4, 4X
Standards
CSA C22.2 No.14, CSA C22.2 No.213-M198, CSA LR20713, CSA LR68551, UL 1604, UL 508, UL E10323, UL E131568
IP Rating
IP65
NEMA Contact Rating Designation
A600 and Q300
Lamp Voltage
24V AC/DC
Contact Rating
10A @ 600V AC, 2.5A @ 250V DC
Number of Operators
1
Product Type
Push Button Operators
Operator Illumination
Illuminated
Series
E34
Operating Temperature - Minimum
32 Degrees F
AC Contact Rating
10 A @ 600 V
Operating Temperature - Maximum
140 Degrees F
Mechanical Operating Durability
1.00 x 10^7
Bezel Material
Zinc Die Cast
Push Button Style
Extended
DC Contact Rating
2.5 A @ 250 V
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Operator Material
Metal
Hazardous Location Specification
Class I, Div 2, Group B, C, D
Resistance Properties
Corrosion Resistant, Oil and Grease Resistant
Lamp Voltage - Maximum
24 V AC/DC
Number of Indicator Lights
0
Head Color
Amber
Features
Factory Sealed, Drainage Holes, Grounding Nibs

Description

Illuminated Push Button, 30 mm, Momentary Action, Extended Illuminated Type of Operator, Head Material Epoxy Coated Metal, Contact Form 1NO/1NC, Bezel Epoxy Coated/Chemical Resistant Metal, Color Amber, Contact Rating 10A @ 600V AC, 2.5A @ 250V DC, NEMA Contact Rating Designation A600 and Q300, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CSA C22.2 No.14, CSA C22.2 No.213-M198, CSA LR20713, CSA LR68551, UL 1604, UL 508, UL E10323, UL E131568
