Shop All Selector Switches
Siemens

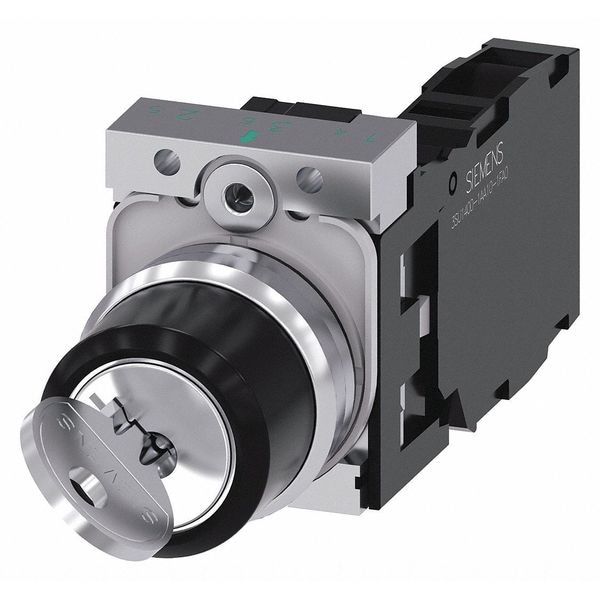

Non-Illuminated Selector Switch, 1NO/1NC, Silver

original price: $78.03
10% off
new price: $70.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Action Maintained/Maintained
  • Size 22 mm
  • Basic Material Metal
  • NEMA Rating 1, 12, 2, 3, 3R, 4, 4X
  • Type of Operator Keyed
See all product information

Product Information

Dimensions

Size 22 mm
Panel Cutout Diameter 22 mm
Overall Depth 5 in
Overall Width 4 in
Overall Height 1.95 in

Details

Action Maintained/Maintained
Basic Material Metal
NEMA Rating 1, 12, 2, 3, 3R, 4, 4X
Type of Operator Keyed
Contact Form 1NO/1NC
Color Silver
Operator Head Material Metal
Cam No Cam Included
Contact Rating 10A @ 600V AC, 1A @ 600V DC
Item Selector Switch
Position 2
Key Removal Any Position
Bezel Material Metal
Bezel Color Silver
IP Rating IP20, IP66, IP67, IP69, IP69K
Switch Operation @ Position B OX
Standards REACH Art. 33, RoHS, WEEE (2012/19/EU)
NEMA Contact Rating Designation A600/R300
Switch Operation @ Position C No Third Position
Switch Operation @ Position D No Fourth Position
Switch Operation @ Position A XO
AC Contact Rating 10 A @ 600 V
Series 3SU1150
DC Contact Rating 1 A @ 600 V
Colour button Silver
Number of contacts as normally open contact 1
With front ring Yes
Number of switch positions 2
Suitable for illumination No
Spring-return No
Switching function latching Yes
Degree of protection (IP) IP67/IP69K
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 1
Includes Operator Key Key Included
Operator Illumination Non-Illuminated
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 4X
Key Removal Position Any Position
Switch Function @ 3rd Position No Third Position
Switch Function @ 4th Position No Fourth Position
Hazardous Location Specification Not Rated
Contact Block Material Metal
Number of Positions 2
Operator Head Color Metal
Operator Head Type Keyed
Switch Function @ 1st Position Off
Switch Function @ 2nd Position On

Description

Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, 1NO/1NC Contact Form, Type of Operator Keyed, Color Silver, Any Position Key Removal, Operator Head Material Metal, Basic Material Metal, Bezel Material Metal, Bezel Color Silver, Contact Rating 10A @ 600V AC, 1A @ 600V DC, NEMA Contact Rating Designation A600/R300, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP20, IP66, IP67, IP69, IP69K, Cam No Cam Included, Switch Operation @ Position A XO, Switch Operation @ Position B OX
