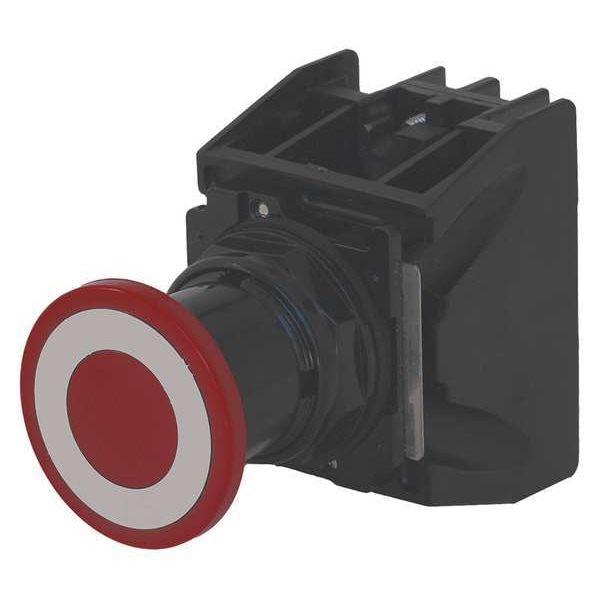

Eaton Illuminated Button w/Contacts, 24VAC/DC E34EX853RD24 - main

Illuminated Button w/Contacts, 24VAC/DC

  • Mfr # E34EX853RD24

  • Zoro # G8737267

product price: $357.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V AC/DC
Action
Maintained/Maintained
Color
Amber
Lamp Type
LED
Type of Operator
Mushroom Head Illuminated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E34EX853RD24
Zoro #
G8737267
UPC #
782114551363
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Height
1 in
Width
1 in
Length
1 in
Product Diameter
2.63 in
Overall Depth
1 in
Mushroom Head Diameter
40 mm
Overall Height
1 in
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
1 yr
Overall Width
1 in

Details

Item
Mushroom Head Push Button
Voltage
24V AC/DC
Action
Maintained/Maintained
Color
Amber
Lamp Type
LED
Type of Operator
Mushroom Head Illuminated
Head Material
Epoxy Coated Metal
Terminal Connection
Screw Clamp
Contact Form
1NO/1NC
Bezel
Epoxy Coated/Chemical Resistant Metal
Lamp Module Voltage
24V AC/DC
Lamp Module Type
Full Voltage
Standards
CE, CSA, FDA 3-A, UL 1604, UL 508
NEMA Rating
12, 13, 3, 3R, 4, 4X
Number of Operators
1
Safety Rating
FDA Approved 3A Sanitary Chemical Requirements, Class 1, Div 2, Groups B,C, D (NEC), Class 1, Zone 2, IIB and H2 (NEC 505)
NEMA Contact Rating Designation
A600 and Q300
Contact Rating
10A @ 600V AC, 2.5A @ 250V DC
Lamp Voltage
24V AC/DC
IP Rating
IP65
Product Type
Push Button Operators
Type
Class I Division 2
Bus Material
Plastic
Number of Positions
2
Actuator Color
Red
Operating Mode
Push: maintained;Pull: maintained
Product Name
Eaton E34 pushbutton
Series
E34
Illumination
Illuminated
Certifications
CSA Certified;UL 508;UL 1604
Light Unit Voltage
24 Vac/dc
Contact Configuration
1 NO-1 NC
Actuator
Standard
Compliances
CE Marked;FDA 3-A
Light Unit Type
LED, full voltage
Rating
NEMA 13;NEMA 3;NEC Class I Division 2, Groups B, C and D;NEMA 12;NEMA 3R;NEMA 4X;NEMA 4
Bezel Material
Zinc Die Cast
Operating Temperature - Maximum
140 Degrees F
Hazardous Location Specification
Class I, Div 2, Group B, C, D
Lamp Voltage - Maximum
24 V AC/DC
Head Color
Red
Mechanical Operating Durability
1.00 x 10^7
AC Contact Rating
10 A @ 600 V
Number of Indicator Lights
0
Features
Factory Sealed, Drainage Holes, Grounding Nibs
Operating Temperature - Minimum
32 Degrees F
Operator Material
Metal
Operator Illumination
Illuminated
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
DC Contact Rating
2.5 A @ 250 V
Push Button Style
Mushroom Head
Maintained Action Release
Push/Pull
Resistance Properties
Corrosion Resistant, Oil and Grease Resistant

Description

Mushroom Head Push Button, 30 mm, Maintained/Maintained Action, Mushroom Head Illuminated Type of Operator, Head Material Epoxy Coated Metal, Contact Form 1NO/1NC, Bezel Epoxy Coated/Chemical Resistant Metal, Color Amber, Contact Rating 10A @ 600V AC, 2.5A @ 250V DC, NEMA Contact Rating Designation A600 and Q300, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, FDA 3-A, UL 1604, UL 508, Terminal Connection Screw Clamp
