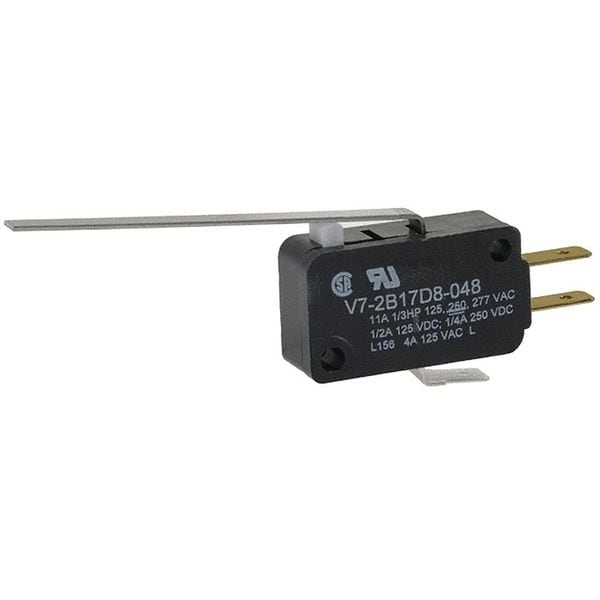

Miniature Snap Action Switch, Lever, Long Actuator, SPDT

  • Mfr # V7-2B17D8-048

  • Zoro # G4550217

product price:
$
5.49
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Long
AC Contact Rating - Snap Action Switch
11 A 1/3 HP 125 V, 250 V or 277 V
DC Contact Rating - Snap Action Switch
1/2 A 125 V; 1/4 A 250 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
2.34 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V7-2B17D8-048
Zoro #
G4550217
UPC #
-
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
2.34 in
Height - Snap Action Switch
0.63 in
Width - Snap Action Switch
1.14 in
Depth - Snap Action Switch
0.4 in
Depth
0.4"
Height
0.63"
Mounting Dimension
0.41 x 0.87" Centers
Mounting Dimension - Snap Action Switch
0.87 in Centers
Actuator Length
2.34"
Length
1.14"
Body Width
1.14 in
Overall Depth
0.4 in
Mounting Hole Diameter
1/8 in
Overall Width
1.14 in
Body Depth
0.4 in
Body Height
0.63 in
Overall Height
0.63 in
Lever Actuator Length
2.34 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Long
AC Contact Rating - Snap Action Switch
11 A 1/3 HP 125 V, 250 V or 277 V
DC Contact Rating - Snap Action Switch
1/2 A 125 V; 1/4 A 250 V
Contact Form- Switches
SPDT
Differential Travel
0.05 in
Terminal Type
Quick Connect
Operating Temp. Range
-40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F]
Voltage Rating
250VAC
Series
V7
Current Rating
3A
Contact Form
1NO/1NC
Over Travel
0.115 in
Type of Actuator
Long Straight Lever
Standards
CSA, ENEC, RoHS, UL Listed
Release Force
0.04 ozf
Housing Material
PCT Polyester Thermoplastic
Operating Force
0.71 oz.
Max. Pretravel
0.235 in
Electrical Connection - Snap Action Switch
3/16 in Quick Connect
Watertight - Snap Action Switch
No
AC Contact Rating
11 A @ 277 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
Operator Configuration
Straight
Pre-Travel - max
0.235 in (5.97mm) PT
Over-Travel
0.115 in (2.92mm) OT
Type
Miniature Limit Switch
Operating Temperature
-40°F (-40°C) to 185°F (85°C)
Head
Lever
Connection Configuration
Spade Tab, 0.188 in.Wide x 0.020 in.Thick
Contact Rating
11A 125-277V AC 0.25A 250V DC
Differential-Travel - max
0.05 in (1.27mm) DT
Current Rating - nominal
10A
Head Action
Spring Return, Standard
Connection
Quick Connect Terminal
Force to Operate
0.7 oz (0.2N) OF
Operating Temperature - Maximum
365 Degrees F
Operating Force - Minimum
0.2 N
Center Mounting Hole Distance
0.88 in
Pretravel
0.235 in
Electrical Connection
Quick Connect
Body Material
Polyester
Overtravel
0.115 in
Operating Force - Maximum
0.71 ozf
Differential Travel - Maximum
0.05 in
Actuator Style
Lever
Operating Temperature - Minimum
-40 Degrees F
Mounting Hole Horizontal Center to Center Distance
22 mm

Description

Miniature Snap Action Switch, Lever, Long, AC Contact Rating - Snap Action Switch 11 A 1/3 HP 125 V, 250 V or 277 V, DC Contact Rating - Snap Action Switch 1/2 A 125 V; 1/4 A 250 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 2.34 in, Height - Snap Action Switch 0.63 in, Width - Snap Action Switch 1.14 in, Depth - Snap Action Switch 0.4 in, Electrical Connection - Snap Action Switch 3/16 in Quick Connect, Mounting Dimension - Snap Action Switch 0.87 in Centers
