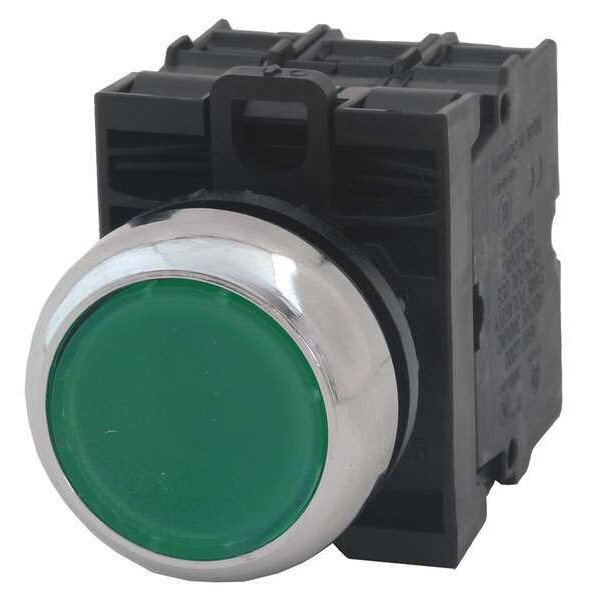

Illuminated Push Button, 22 mm, 2NO, Green

  • Mfr # M22M-DL-G-K20-230G

  • Zoro # G6186022

product price:  $83.39
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M22M-DL-G-K20-230G
Zoro #
G6186022
UPC #
786685861357
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Product Height
1.17 in
Product Length/Depth
1.17 in
Product Width
.39 in
Overall Width
1 in
Overall Depth
2.26 in
Manufacturer Warranty Length
1 yr
Overall Height
1 in

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Green
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
NEMA Rating
1, 13, 2, 3, 4, 4X
Lamp Type
LED
Lamp Module Type
Full Voltage
Bezel
Chrome Die Cast Aluminum
Type of Operator
Flush Button
Basic Material
Metal
Contact Form
2NO
Number of Operators
1
Color
Green
Lamp Module Voltage
264V AC
NEMA Contact Rating Designation
A600
Contact Rating
3A @ 24 DC, 6A @ 230V AC
IP Rating
IP66, IP67, IP69K
Bezel Material
Metal
Type
22.5 mm RMQ-Titan Modular
DC Contact Rating
3 A @ 24 V
Features
Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter
AC Contact Rating
6 A @ 240 V
Series
M22
Product Type
Push Button Operators
Light unit voltage
85-264 Vac/dc
Actuator function
Momentary
Actuator
Flush
Button color
Green
Contact configuration
2 NO
Illumination
Illuminated
Light color
Green
Environmental rating
IP67, IP69K (IP66 key-release)
Operating mode
Momentary
Application
Pushbutton
Special features
M22 series
Certifications
Contact Manufacturer
Product Name
Eaton M22 modular pushbutton
Number of Indicator Lights
0
Lamp Voltage - Maximum
264 V AC/DC
Operator Material
Metal
Mechanical Operating Durability
5.00 x 10^6
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Resistance Properties
Corrosion Resistant

Description

Illuminated Push Button, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Metal, Contact Form 2NO, Bezel Chrome Die Cast Aluminum, Color Green, Contact Rating 3A @ 24 DC, 6A @ 230V AC, NEMA Contact Rating Designation AC-15, DC-13, Number of Operators 1, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69K, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Terminal Connection Screw Clamp
