  15. Illuminated Push Button, 22.5 mm, 1NO/1NC, Red

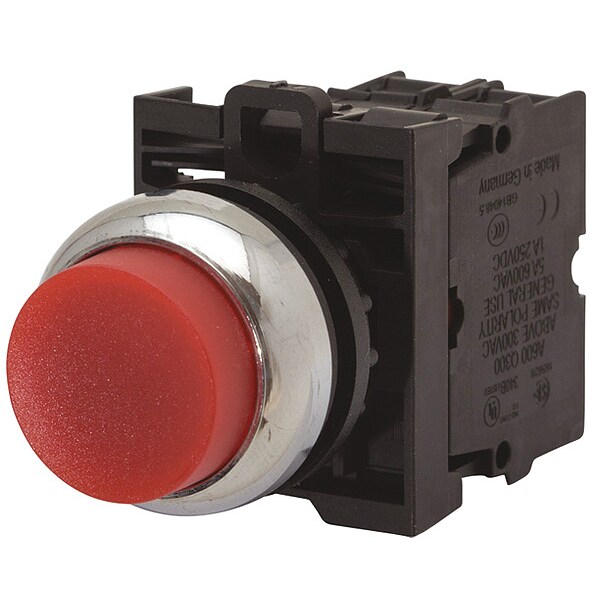

Eaton Illuminated Push Button, 22.5 mm, 1NO/1NC, Red M22-DLH-R-K11-R - main

Illuminated Push Button, 22.5 mm, 1NO/1NC, Red

  • Mfr # M22-DLH-R-K11-R

  • Zoro # G3632320

product price: $69.79
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22-DLH-R-K11-R
Zoro #
G3632320
UPC #
786685274775
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Size
22.5 mm
Product Length/Depth
1.46 in
Product Height
2.16 in
Product Width
1.18 in
Overall Width
1 in
Overall Height
1 in
Overall Depth
2.56 in
Manufacturer Warranty Length
1 yr

Details

Item
Illuminated Push Button
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Bezel
Silver Coated
Contact Form
1NO/1NC
Series
M22
Lamp Type
LED
Type
22.5 mm Modular
Type of Operator
Extended Button
Color
Red
DC Contact Rating
3 A @ 24 V
Lamp Module Type
Full Voltage
NEMA Rating
4X
Legend
No Legend
Number of Operators
1
Features
Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter
AC Contact Rating
6 A @ 240 V
Legend/Background Color
No Legend/Red
Bezel Material
Nylon
IP Rating
IP67, IP69K
Legend Markings
No Legend
Contact Type
1NO/1NC
Voltage
12 to 30 V AC/DC
Product Type
Push Button Operators
Actuator function
Momentary
Special features
M22 series
Compliances
CE Marked
Contact configuration
1 NC
Illumination
Illuminated
Environmental rating
IP67, IP69K, NEMA 4X, NEMA 13
Application
Pushbutton
Certifications
CCC Marked
Button color
Red
Actuator
Button, flush
Product Name
Eaton M22 modular pushbutton
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Corrosion Resistant
Number of Indicator Lights
0
Operator Voltage Rating - Maximum
30 V AC/DC
Operating Temperature - Maximum
158 Degrees F
Mechanical Operating Durability
5.00 x 10^6
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Material
Plastic
Lamp Voltage - Maximum
30 V AC/DC

Description

Illuminated Push Button, 22.5 mm, Momentary Action, Extended Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Silver Coated, Color Red, Number of Operators 1, NEMA Rating 4X, IP Rating IP67, IP69K, Legend No Legend, Legend/Background Color No Legend/Red, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Terminal Connection Screw Clamp, Features Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter
