This item is Discontinued.

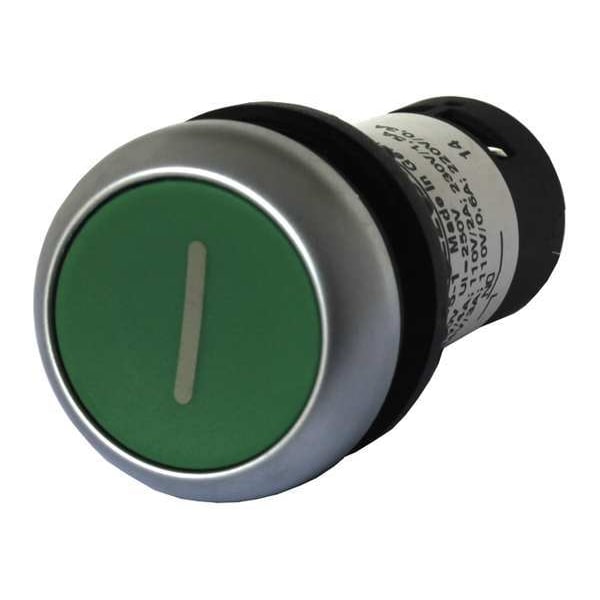

Eaton Illuminated Push Button, 22mm, Green C22-DL-G-X1-K10-120

Illuminated Push Button, 22mm, Green (Discontinued)

  • Mfr # C22-DL-G-X1-K10-120
  • Zoro # G6135796
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C22-DL-G-X1-K10-120
Zoro #
G6135796
UPC #
786685896908
Country of Origin
Germany

Dimensions

Size
22 mm
Panel Cutout Diameter
22 mm

Details

Item
Illuminated Push Button
Legend
I
Color
Green
Legend/Background Color
White/Green
Action
Momentary
Head Material
Polycarbonate
Standards
CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL Listed, VDE 0660
Contact Rating
1.5A @ 230V AC, 3A @ 24V DC
Contact Form
1NO
NEMA Rating
1, 12, 13, 3, 4X
Lamp Voltage
120
Lamp Module Voltage
120V AC
NEMA Contact Rating Designation
A600
Lamp Module Type
Full Voltage
Basic Material
Plastic
Type of Operator
Flush Button
Terminal Connection
Screw Clamp
Number of Operators
1
Bezel
Silver Coated Polycarbonate
Lamp Type
LED
IP Rating
IP67, IP69K
Product Type
Push Button Operators
Bezel Material
Silver Coated Polycarbonate
NEMA Enclosure Rating
1, 12, 13, 3, 4X
Push Button Style
Flush
Operator Material
Plastic
Legend Background Color
Green/White
Head Color
Green

Description

Illuminated Push Button, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Polycarbonate, Contact Form 1NO, Bezel Silver Coated Polycarbonate, Color Green, Contact Rating 1.5A @ 230V AC, 3A @ 24V DC, NEMA Contact Rating Designation AC-15, DC-13, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 4X, IP Rating IP67, IP69K, Legend I, Legend/Background Color White/Green, Standards CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL Listed, VDE 0660, Terminal Connection Screw Clamp
