This item is Discontinued.

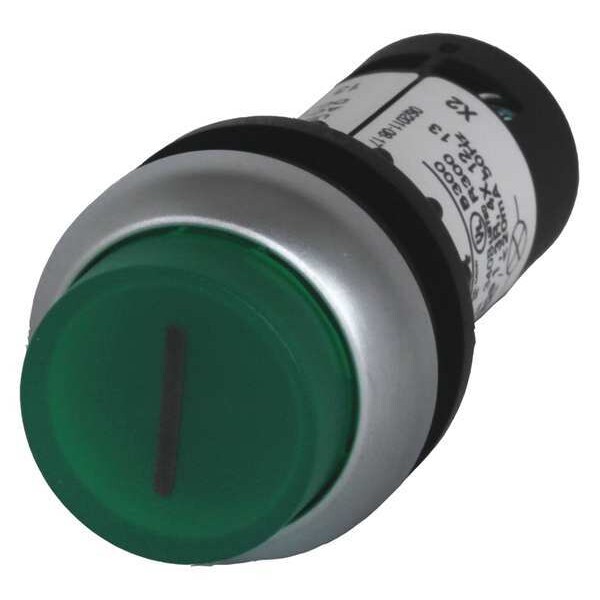

Eaton Illuminated Push Button, 22mm, Green C22-DLH-G-X1-K10-120

Illuminated Push Button, 22mm, Green (Discontinued)

Mfr # C22-DLH-G-X1-K10-120
Zoro # G6125743

Get a 10% off coupon

Free 30-day returns

Get 30 days to pay with Net 30

Unlock tax-exempt savings

Specifications

Product Information

MFR #

C22-DLH-G-X1-K10-120

Zoro #

G6125743

UPC #

Country of Origin

Germany

Dimensions

Size

22 mm

Panel Cutout Diameter

22 mm

Details

Item

Illuminated Push Button

Legend

Color

Green

Legend/Background Color

Black/Green

Bezel

Silver Coated Polycarbonate

Basic Material

Plastic

Terminal Connection

Screw Clamp

IP Rating

IP67, IP69K

Lamp Voltage

120

Lamp Type

LED

Lamp Module Type

Full Voltage

Number of Operators

Action

Momentary

Standards

CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL Listed, VDE 0660

Head Material

Polycarbonate

Type of Operator

Extended Button

Contact Form

1NO

Lamp Module Voltage

120V AC

NEMA Contact Rating Designation

A600

NEMA Rating

1, 12, 13, 3, 4X

Contact Rating

1.5A @ 230V AC, 3A @ 24V DC

Product Type

Push Button Operators

Bezel Material

Silver Coated Polycarbonate

Operator Material

Plastic

NEMA Enclosure Rating

1, 12, 13, 3, 4X

Head Color

Green

Push Button Style

Extended

Legend Background Color

Black/Green

Description

Illuminated Push Button, 22 mm, Momentary Action, Extended Button Type of Operator, Head Material Polycarbonate, Contact Form 1NO, Bezel Silver Coated Polycarbonate, Color Green, Contact Rating 1.5A @ 230V AC, 3A @ 24V DC, NEMA Contact Rating Designation AC-15, DC-13, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 4X, IP Rating IP67, IP69K, Legend I, Legend/Background Color Black/Green, Standards CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL Listed, VDE 0660
