  15. Illuminated Push Button, 30 mm, 1NO, Clear

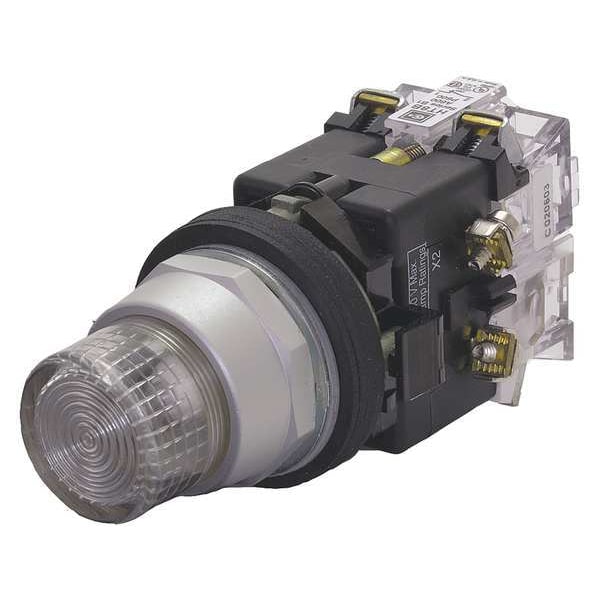

Eaton Illuminated Push Button, 30 mm, 1NO, Clear HT8GBCAF3 - main

Illuminated Push Button, 30 mm, 1NO, Clear

  • Mfr # HT8GBCAF3

  • Zoro # G8855533

product price: $133.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Clear
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HT8GBCAF3
Zoro #
G8855533
UPC #
782113585246
Country of Origin
Dominican Republic

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Product Height
1.4 in
Product Length/Depth
6.65 in
Product Width
2 in
Overall Width
2 in
Manufacturer Warranty Length
1 yr
Overall Height
1.4 in
Overall Depth
6.65 in

Details

Item
Illuminated Push Button
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Clear
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CSA, UL Listed
Replacement Lamp
Mfr. No. HT8LEDYF3
Number of Operators
1
Lamp Type
LED
Bezel
Anodized Aluminum/Mounting Rings
Lamp Module Type
Full Voltage
NEMA Rating
12, 13, 3, 3R, 4, 4X
Basic Material
Metal
Type of Operator
Round Button
Contact Form
1NO
NEMA Contact Rating Designation
A600/P600
Color
Clear
Lamp Voltage
24V AC/DC
Contact Rating
10A @ 600V AC/DC
IP Rating
IP65
Lamp Module Voltage
24V AC/DC
Bezel Material
Chrome
Series
HT800
DC Contact Rating
5 A @ 250 V
AC Contact Rating
10 A @ 600 V
Type
30.5 mm, Watertight/Oiltight
Features
Allen-Bradley Pushbutton Panel Compatible
Contact Type
1NO
Voltage
24V
Product Type
Push Button Operators
Certifications
UL Listed
Actuator
Extended
Illumination
Illuminated
Operator material
Plastic
Operating mode
Momentary
Special features
HT800 series
Actuator Color
Clear
Light unit voltage
24 Vac/dc
Application
Pushbutton
Actuator function
Momentary
Contact configuration
1 NO
Lens Color
Clear
Light unit type
LED, full voltage
Product Name
Eaton HT800 pushbutton
Operator Material
Metal
Number of Indicator Lights
0
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Operating Temperature - Maximum
140 Degrees F
Operator Voltage Rating - Maximum
28 V
Resistance Properties
Oil and Grease Resistant, Watertight
Mechanical Operating Durability
1.00 x 10^7
Operating Temperature - Minimum
10 Degrees F
Lamp Voltage - Maximum
24 V AC/DC

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Metal, Contact Form 1NO, Bezel Anodized Aluminum/Mounting Rings, Color Clear, Contact Rating 10A @ 600V AC/DC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CSA, UL Listed, Terminal Connection Screw Clamp, Features Allen-Bradley Pushbutton Panel Compatible
