Shop SCHNEIDER ELECTRIC

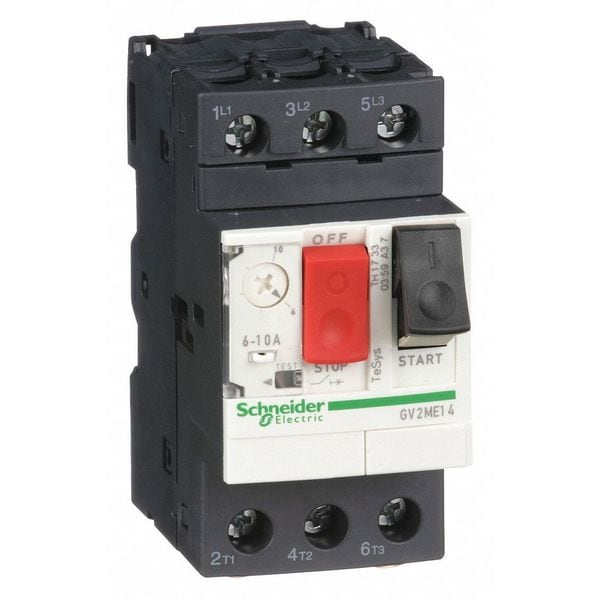

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 10 A

  • Mfr # GV2ME14

  • Zoro # G1814373

product price:
$
179.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Push Button
Phase
3
Current AC
10 A
Series
TeSys Deca
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GV2ME14
Zoro #
G1814373
UPC #
785901211976
Country of Origin
Thailand

Dimensions

Overall Height
3.5 in
Overall Width
1.77 in
Overall Depth
3.09 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Phase
3
Current AC
10 A
Series
TeSys Deca
Standards
ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
Pilot Light
No
Description/Special Features
Melting Alloy Thermal Overload, Single Unit
HP @ 3 Phase - 460-575V
5/7.5
HP @ 3 Phase - 575V
7 1/2 hp
HP @ 1 Phase - 230V
1 1/2 hp
Phase Loss Sensitivity
Yes
Fire Resistance
960°C IEC 60695-2-11
Magnetic Tripping Current
138-138 A
Climatic Withstand
IACS E10
Power Dissipation Per Pole
2.5 W
Phase Failure Sensitivity
yes IEC 60947-4-1
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Motor Power Kw
3-3 kW 400/415 V AC 50/60 Hz || 4-4 kW 400/415 V AC 50/60 Hz || 4-4 kW 500 V AC 50/60 Hz || 5.5-5.5 kW 500 V AC 50/60 Hz || 5.5-5.5 kW 690 V AC 50/60 Hz || 7.5-7.5 kW 690 V AC 50/60 Hz
Thermal Protection Adjustment Range
6-10 A IEC 60947-4-1
Utilisation Category
category A IEC 60947-2 || AC-3 IEC 60947-4-1
Ambient Air Temperature For Storage
-40-80°C
Device Application
motor protection
Ik Degree Of Protection
IK04
Mechanical Robustness
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
Rated Duty
continuous IEC 60947-4-1
Range
TeSys Deca
Network Type
AC
Device Short Name
GV2ME
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Suitability For Isolation
yes IEC 60947-1§ 7-1-6
Product Name
TeSys GV2 || TeSys Deca
Trip Unit Technology
thermal-magnetic
Tightening Torque
1.7 N.m screw clamp terminal
Color
dark grey
Operating Altitude
6561.68 ft (2000 m)
Maximum Overload Relay Current Setting
10 A
Horsepower @ Three Phase - 480V AC
5 hp
Horsepower @ Three Phase - 240V AC
3 hp
Mechanical Operating Durability
100,000
Horsepower @ Single Phase - 120V AC
1/2 hp
IP Rating
IP20
Includes Pilot Light
No
Frequency
50/60 Hz
Minimum Overload Relay Current Setting
6 A
Maximum Voltage Rating
690V AC
Overload Protection Type
Thermal
Electrical Operating Durability
100,000
Resistance Properties
Fire Resistant
Status Indicator
No Indicator
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Terminal Connection Type
Screw Clamp Terminals
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-4 Degrees F
Horsepower @ Single Phase - 240V AC
1 1/2 hp
Starter Style
IEC
Horsepower @ Three Phase - 208V AC
2 hp
Rated Service Short-Circuit Breaking Capacity
100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 100% 500 V AC 50/60 Hz IEC 60947-2; 75% 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 1/2 hp, Horsepower @ Single Phase - 240V AC 1 1/2 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 10 A, Horsepower @ Three Phase - 208V AC 2 hp, Horsepower @ Three Phase - 240V AC 3 hp, Horsepower @ Three Phase - 480V AC 5 hp, Series TeSys Deca, Horsepower @ Three Phase - 600V AC 7 1/2 hp, Maximum Overload Relay Current Setting 10 A
