  15. Illuminated Push Button, 30mm, 1NO, Red

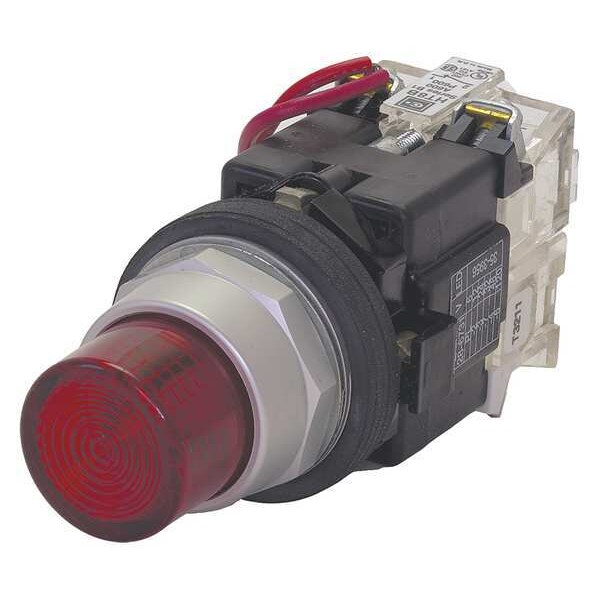

Eaton Illuminated Push Button, 30mm, 1NO, Red HT8GBRAF3 - main

Illuminated Push Button, 30mm, 1NO, Red

  • Mfr # HT8GBRAF3

  • Zoro # G8855576

product price: $131.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V
Color
Red
Number of Operators
1
Standards
CSA, UL Listed
Contact Rating
10A @ 600V AC/DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HT8GBRAF3
Zoro #
G8855576
UPC #
782113584768
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Height
5 in
Product Length/Depth
3 in
Product Width
2 in
Panel Cutout Diameter
30 mm
Overall Width
2 in
Manufacturer Warranty Length
1 yr
Overall Depth
3 in
Overall Height
5 in

Details

Item
Illuminated Push Button
Voltage
24V
Color
Red
Number of Operators
1
Standards
CSA, UL Listed
Contact Rating
10A @ 600V AC/DC
IP Rating
IP65
Lamp Module Type
Full Voltage
Lamp Type
LED
Head Material
Metal
Terminal Connection
Screw Clamp
NEMA Rating
12, 13, 3, 3R, 4, 4X
NEMA Contact Rating Designation
A600/P600
Replacement Lamp
Mfr. No. HT8LEDYF3
Lamp Voltage
24V AC/DC
Action
Momentary
Basic Material
Metal
Contact Form
1NO
Bezel
Anodized Aluminum/Mounting Rings
Lamp Module Voltage
24V AC/DC
Type of Operator
Round Button
Features
Allen-Bradley Pushbutton Panel Compatible
DC Contact Rating
5 A @ 250 V
AC Contact Rating
10 A @ 600 V
Series
HT800
Contact Type
1NO
Bezel Material
Chrome
Type
30.5 mm, Watertight/Oiltight
Special Features
HT800 series
Product Type
Push Button Operators
Application
Pushbutton
Certifications
CSA Certified
Operator material
Plastic
Lens Color
Red
Light unit voltage
24 Vac/dc
Operating Mode
Momentary
Contact configuration
1 NO
Illumination
Illuminated
Light unit type
LED, full voltage
Actuator function
Momentary
Actuator
Extended
Enclosure
NEMA 3R
Actuator color
Red
Product Name
Eaton HT800 pushbutton
Head Color
Red
Number of Indicator Lights
0
Operator Material
Metal
Push Button Style
Extended
Operator Illumination
Illuminated
Resistance Properties
Oil and Grease Resistant, Watertight
Operating Temperature - Minimum
10 Degrees F
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Mechanical Operating Durability
1.00 x 10^7
Operator Voltage Rating - Maximum
28 V
Lamp Voltage - Maximum
24 V AC/DC
Operating Temperature - Maximum
140 Degrees F

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Metal, Contact Form 1NO, Bezel Anodized Aluminum/Mounting Rings, Color Red, Contact Rating 10A @ 600V AC/DC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CSA, UL Listed, Terminal Connection Screw Clamp, Features Allen-Bradley Pushbutton Panel Compatible
