  15. Illuminated Push Button, 30mm, Blue

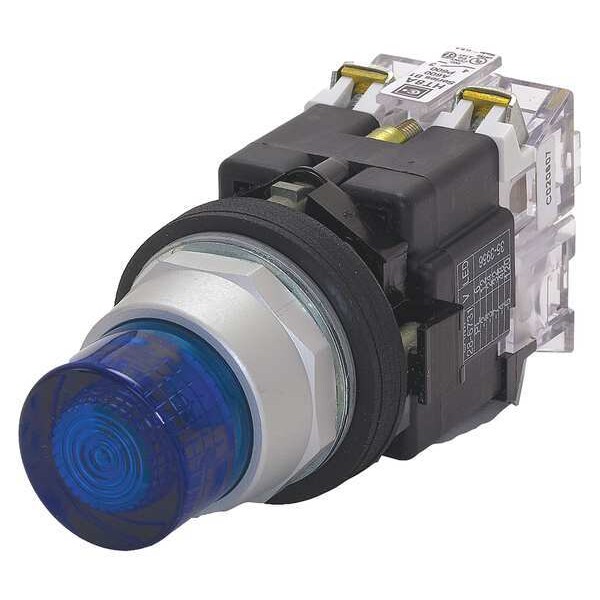

Eaton Illuminated Push Button, 30mm, Blue HT8GBBAF7 - main

Illuminated Push Button, 30mm, Blue

  • Mfr # HT8GBBAF7

  • Zoro # G8855506

product price: $133.99
/ea
Free Shipping & Returns

Key Features

Voltage
120v
Color
Blue
Lamp Voltage
120V AC
Lamp Type
LED
NEMA Rating
12, 13, 3, 3R, 4, 4X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HT8GBBAF7
Zoro #
G8855506
UPC #
782113584713
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Height
1.4 in
Product Length/Depth
6.65 in
Product Width
2 in
Manufacturer Warranty Length
1 yr
Panel Cutout Diameter
30 mm
Overall Width
2 in
Overall Height
1.4 in
Overall Depth
6.65 in

Details

Item
Illuminated Push Button
Voltage
120v
Color
Blue
Lamp Voltage
120V AC
Lamp Type
LED
NEMA Rating
12, 13, 3, 3R, 4, 4X
NEMA Contact Rating Designation
A600/P600
Number of Operators
1
Bezel
Anodized Aluminum/Mounting Rings
Head Material
Metal
IP Rating
IP65
Lamp Module Type
Full Voltage
Action
Momentary
Contact Form
1NO
Standards
CSA, UL Listed
Basic Material
Metal
Contact Rating
10A @ 600V AC/DC
Lamp Module Voltage
120V AC
Replacement Lamp
Mfr. No. HT8LEDYF7
Type of Operator
Round Button
Terminal Connection
Screw Clamp
Features
Allen-Bradley Pushbutton Panel Compatible
DC Contact Rating
5 A @ 250 V
Bezel Material
Chrome
Contact Type
1NO
AC Contact Rating
10 A @ 600 V
Series
HT800
Special Features
HT800 series
Type
30.5 mm, Watertight/Oiltight
Product Type
Push Button Operators
Application
Pushbutton
Light unit type
LED, full voltage
Operator material
Plastic
Enclosure
NEMA 12
Contact configuration
1 NO
Operating Mode
Momentary
Illumination
Illuminated
Certifications
UL Listed
Lens Color
Blue
Light unit voltage
120 Vac/dc
Actuator color
Blue
Actuator function
Momentary
Actuator
Extended
Product Name
Eaton HT800 pushbutton
Head Color
Blue
Resistance Properties
Corrosion Resistant, Oil and Grease Resistant, Watertight
Operator Illumination
Illuminated
Mechanical Operating Durability
1.00 x 10^7
Operator Voltage Rating - Maximum
28 V
Number of Indicator Lights
0
Operating Temperature - Maximum
140 Degrees F
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Operator Material
Metal
Operating Temperature - Minimum
10 Degrees F
Lamp Voltage - Maximum
120 V AC/DC
Push Button Style
Extended

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Metal, Contact Form 1NO, Bezel Anodized Aluminum/Mounting Rings, Color Blue, Contact Rating 10A @ 600V AC/DC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CSA, UL Listed, Terminal Connection Screw Clamp, Features Allen-Bradley Pushbutton Panel Compatible
