  15. Illuminated Push Button, 30mm, Yellow

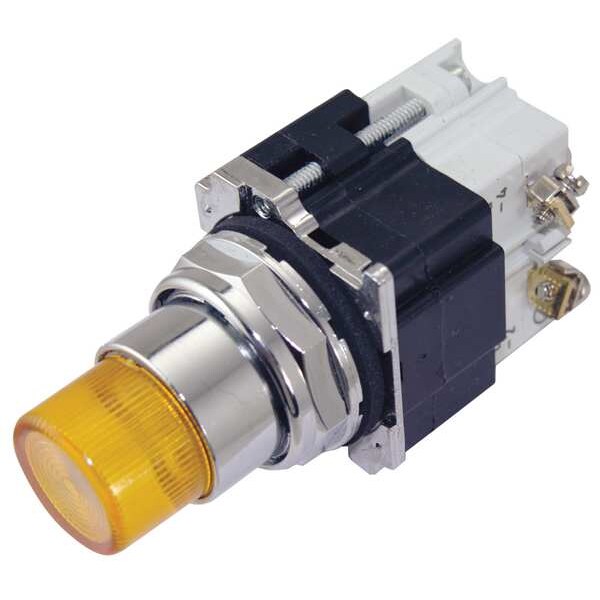

Eaton Illuminated Push Button, 30mm, Yellow 10250T397LYD2A-53 - main

Illuminated Push Button, 30mm, Yellow

  • Mfr # 10250T397LYD2A-53

  • Zoro # G5270404

product price: $261.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Color
Yellow
Type of Operator
Round Button
NEMA Rating
12, 13, 3, 3R, 4, 4X
Replacement Lamp
Mfr. No. E22LED120YN
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T397LYD2A-53
Zoro #
G5270404
UPC #
786680120107
Country of Origin
United States

Dimensions

Size
30 mm
Product Width
1.59 in
Product Length/Depth
1.63 in
Product Height
1.78 in
Manufacturer Warranty Length
1 yr
Overall Depth
1.63 in
Overall Width
1.59 in
Overall Height
1.78 in
Panel Cutout Diameter
30 mm

Details

Item
Illuminated Push Button
Voltage
120V AC
Color
Yellow
Type of Operator
Round Button
NEMA Rating
12, 13, 3, 3R, 4, 4X
Replacement Lamp
Mfr. No. E22LED120YN
Lamp Voltage
120V AC
Action
Momentary
Head Material
Metal
Bezel
Chrome Plated Zinc Die Cast
Basic Material
Metal
Standards
CE, CSA, UL Listed
Lamp Module Voltage
120V AC
Contact Type
1NO
Lamp Module Type
Full Voltage
Number of Operators
1
Lamp Type
LED
IP Rating
IP65
Terminal Connection
Screw Clamp
Contact Rating
10A @ 600V AC/DC
Contact Form
1NO
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Product Type
Push Button Operators
Bezel Material
Chrome Plated Zinc Die Cast
Application
Pushbutton
Type
30.5 mm Heavy-Duty Watertight/Oiltight
Operating Mode
Momentary
Special Features
10250T series
Actuator
Extended
Rating
NEMA 3
Light unit voltage
120 Vac/dc
Light unit type
LED, full voltage
Actuator color
Yellow
Compliances
CE Marked
Contact configuration
1 NO
Series
10250T
Illumination
Illuminated
Certifications
UL Listed
Lamp voltage - min
120 V
Lamp voltage - max
120 V
Actuator material
Plastic
Product Name
Eaton 10250T pushbutton
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Operating Temperature - Minimum
1 Degrees F
Operator Illumination
Illuminated
Number of Indicator Lights
0
Operating Temperature - Maximum
150 Degrees F
DC Contact Rating
5 A @ 250 V
Push Button Style
Extended
Mechanical Operating Durability
1.00 x 10^7
AC Contact Rating
10 A @ 600 V
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D
Operator Material
Metal
Operator Voltage Rating - Maximum
120 V AC/DC
Head Color
Yellow
Resistance Properties
Oil and Grease Resistant
Lamp Voltage - Maximum
120 V AC/DC

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Metal, Contact Form 1NO, Bezel Chrome Plated Zinc Die Cast, Color Yellow, Contact Rating 10A @ 600V AC/DC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs, Includes Operator, Light Module, Contact Block
