  15. Limit Switch Head, Rotry Lvr, Side, 5.90 In

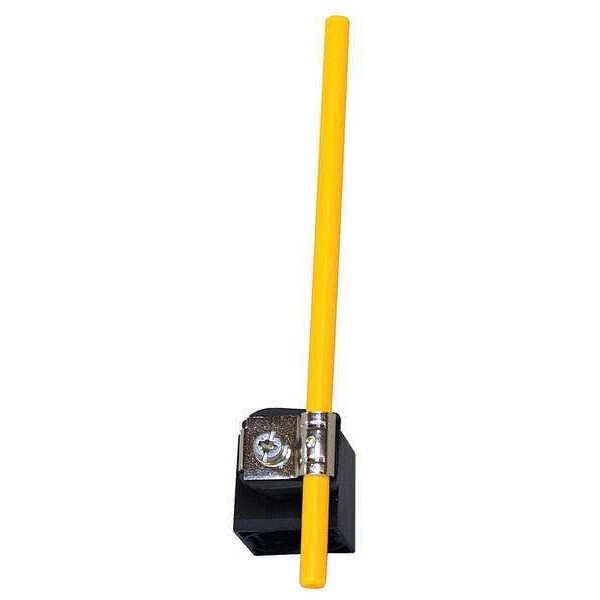

Eaton Limit Switch Head, Rotry Lvr, Side, 5.90 In LS-XRR - main

Limit Switch Head, Rotry Lvr, Side, 5.90 In

  • Mfr # LS-XRR

  • Zoro # G6757012

product price: $34.59
/ea

Key Features

Actuator Style
Rod
Actuator Location
Side
Actuator Length
5.9 in
For Use With
LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LS-XRR
Zoro #
G6757012
UPC #
786685393612
Country of Origin
Germany

Dimensions

Actuator Length
5.9 in
Product Length/Depth
.94 in
Product Height
5.91 in
Product Width
1.81 in
Arm Length - Minimum
3 in
Overall Width
1.81 in
Overall Depth
0.94 in
Arm Length - Maximum
5.9 in
Manufacturer Warranty Length
1 yr
Overall Height
5.91 in

Details

Item
Limit Switch Head
Actuator Style
Rod
Actuator Location
Side
For Use With
LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
Movement
Vertical
Operating Force
8 N
Amps
10
Travel
Operating Travel 55 Degrees , Reset Travel 5 Degrees , Total Travel 65 Degrees
Voltage Rating
415V AC
Standards
RoHS, UL Listed
Operating Temp.
-13 Degrees to 158 Degrees F
IP Rating
IP66, IP67
Description/Special Features
Plastic Rod Lever
Switch type
Rod lever
Operating temperature - min
-13°F
Type
LS-Titan
Environmental rating
IP66, IP67
Certifications
UL Listed
Operating temperature - max
158°F
Product Name
Eaton LS-Titan miniature DIN limit switch
NEMA Enclosure Rating
1, 12, 13, 2, 4, 4X, 6
Series
LS
Pretravel
43 Degrees
Compatible with Manufacturer Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Arm Material
Polymer
Operating Temperature - Minimum
-13 Degrees F
Total Travel
65 Degrees
Differential Travel
65 Degrees
Operating Temperature - Maximum
158 Degrees F
Includes Actuator
Actuator Included
Operating Torque
8.88 in-lb
Overtravel
55 Degrees
Action
Momentary
Directional Movement
CCW/CW
Roller Position
Side
Compatible with Series
LS-Titan
Reset Travel
22 Degrees
Arm Adjustability
Adjustable
Compatible with Brand
Eaton
Compatible Manufacturer Part Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Manufacturer Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible with Manufacturer Model No.
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible with Mfr. Model No.
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
For Use with Mfr Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
For Use With Mfr. Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Pump Manufacturer Part Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Mfr. Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A

Description

Limit Switch Head, Actuator Style Rod, Actuator Location Side, Actuator Length 5.9 in, Contact Form Not Applicable, Amps 10, Voltage Rating 415V AC, Travel Operating Travel 55 Degrees , Reset Travel 5 Degrees , Total Travel 65 Degrees , Movement Vertical, Operating Force 8 N, Operating Temp. -13 Degrees to 158 Degrees F, NEMA Rating 1, 12, 13, 2, 4, 4X, 6, IP Rating IP66, IP67, Standards RoHS, UL Listed
