Limit Switch
Mfr # LSM-XRL
Zoro # G923360974
product price:Â
$
85.19
/ea
Key Features
Roller Adjustability
Fixed
Standards
CE Certified, CE Marked, CSA C22.2 No. 14, CSA Class No.: 3211-03, CSA File No.: 012528, CSA-C22.2 No. 14, EN 60947-5, IEC 60947-5, IEC/EN 60947-5, UL 508, UL Category Control No.: NKCR, UL File No.: E29184
Overall Width
46 in
Features
Approved for Global Application, Operating Heads can be Rotated 90 Degrees, Positive Opening NC Contacts
Roller Material
Nylon
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LSM-XRL
- Zoro #
- G923360974
- UPC #
- 786685392400
- Country of Origin
- Germany
- Roller Adjustability
- Fixed
- Standards
- CE Certified, CE Marked, CSA C22.2 No. 14, CSA Class No.: 3211-03, CSA File No.: 012528, CSA-C22.2 No. 14, EN 60947-5, IEC 60947-5, IEC/EN 60947-5, UL 508, UL Category Control No.: NKCR, UL File No.: E29184
- Features
- Approved for Global Application, Operating Heads can be Rotated 90 Degrees, Positive Opening NC Contacts
- Roller Material
- Nylon
- Compatible Manufacturer Part Number
- LSM-02-RL, LSM-11S-RL, LSM-20A-RL
- Operating Temperature - Maximum
- 158 Degrees F
- Includes Actuator
- Actuator Included
- Operating Temperature - Minimum
- -13 Degrees F
- Directional Movement
- CCW/CW
- Roller Position
- Side
- Item
- Limit Switch Head
- Compatible with Series
- LS-Titan
- Actuator Style
- Roller-Lever Arm
- IP Rating
- IP66, IP67
- Operating Force
- 8 N
- NEMA Enclosure Rating
- 1, 13, 3, 3S, 4, 4X, 6, 6P
- Operating Torque
- 8.88 in-lb
- Series
- LSM
- Action
- Momentary
- Arm Material
- Metal
- Plunger Adjustability
- Fixed
- Compatible with Brand
- Eaton
- Arm Adjustability
- Fixed
- Compatible with Manufacturer Model Number
- LSM-02-RL, LSM-11S-RL, LSM-20A-RL
Description

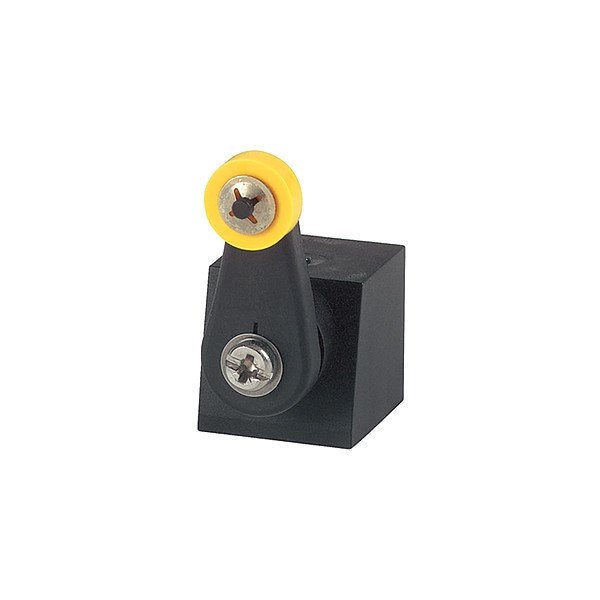

Limit Switch Head, Actuator Style Roller-Lever Arm, Actuator Location Side, Actuator Length 1.29 in, Operating Force 8 N, IP Rating IP66, IP67, Standards CE Certified, CE Marked, CSA C22.2 No. 14, CSA Class No.: 3211-03, CSA File No.: 012528, CSA-C22.2 No. 14, EN 60947-5, IEC 60947-5, IEC/EN 60947-5, UL 508, UL Category Control No.: NKCR, UL File No.: E29184
