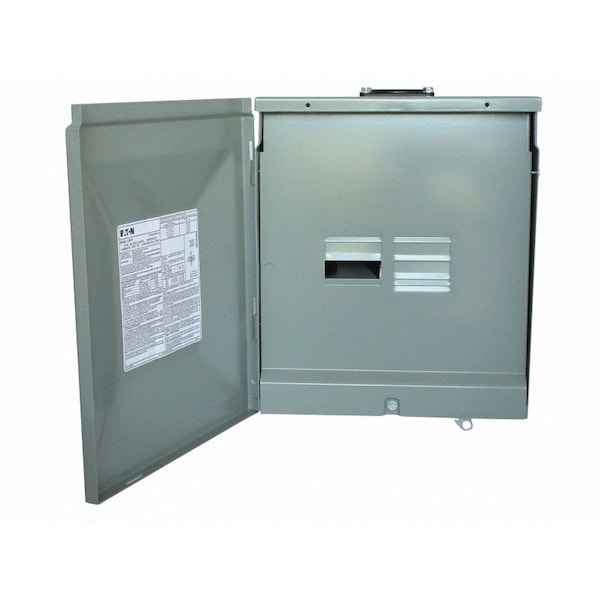

Load Center, 4 Spaces, 125A Amps, 120/240V AC

Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR48L125RP is a 125 Amp outdoor main lug with 4 spaces and 8 circuits.

• Amperage rating: 125 Amp
• Bus material: aluminum
• Rated NEMA 3R for outdoor use
• Interrupt rating: 10 kAIC
• Mounting: combination
• Number of circuits: 8
• Number of spaces: 4
• Phase: single-phase
• Voltage rating: 120/240-Volt
• Wire size: #14-1/0 AWG Cu/Al at 60°C or 75°C
• Tangential center knockout easier installation for conduit applications
• Steel back pan provides solid and reliable breaker mounting single piece design for stability and durability
• Single keyhole mounting - provides easier mounting and leveling
• Drywall marking on enclosure - indicates proper mounting depth for flush applications
• Used with: type BR breakers
