Shop EATON

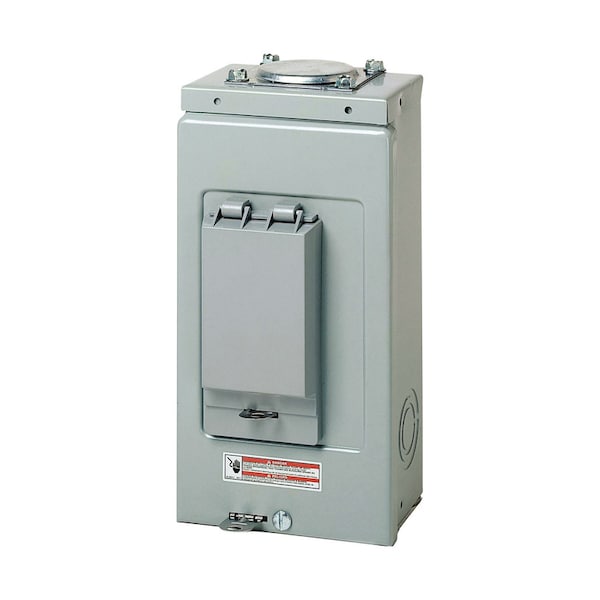

Load Center, BR, 2 Spaces, 70A, 120/240V AC, Main Lug, 1 Phase

  • Mfr # BR24L70RP

  • Zoro # G1922983

product price:
$
53.65
/ea

Key Features

Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
2
Amps
70 A
Voltage
120/240V AC
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BR24L70RP
Zoro #
G1922983
UPC #
786676001618
Country of Origin
United States

Dimensions

Height
23 in
Width
14.31 in
Depth
3.88 in
Min. Wire Size
#8
Max. Wire Size
2 AWG Cu/Al

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
2
Amps
70 A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10kA
Series
BR
Included Enclosure Cover
Cover Included
Enclosure Material
Metallic
Enclosure NEMA Rating
NEMA 3R
Bus Material
Aluminum
Used with
Type BR 1-inch breakers
Number Of Circuits
4
Special features
Current design
Number Of Poles
Four-pole
Number of wires
Three-wire

Description

Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR24L70RP is a 70 amp outdoor main lug with 2 spaces and 4 circuits.


  • • 70 Amp Main Lug Load Center
  • • 2-1" Spaces, 4 Circuits
  • • Top or Bottom Feed
  • • Out Door, NEMA 3R
  • • Surface Mount
  • • Uses Type BR, BD, BQ, GFCB Eaton Circuit Breakers
