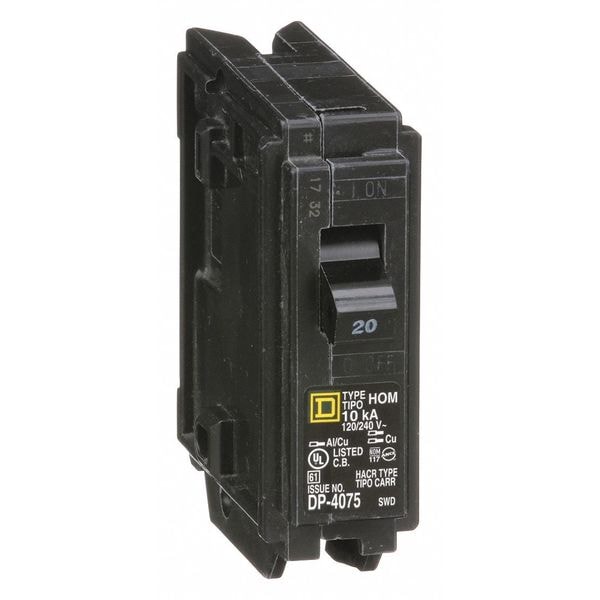

Miniature Circuit Breaker, HOMELINE Series, 20A, 1 Pole, 120V AC, 10kA at 120V AC
Mfr # HOM120
Zoro # G0424961
CAD Available
product price: $11.29
/eaKey Features
CAD Drawing
Series
HOMELINE
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Standard
Phase
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
HOM120
Zoro #
G0424961
UPC #
785901065210
Country of Origin
Mexico
Dimensions
Frame Size
100A/HOM
Width
1 in
Depth
2.98 in
Height
3.13 in
Min. Wire Size
14 AWG
Max. Wire Size
8 AWG
Wire Size
1 x AWG 14 to AWG 8 ( aluminium/copper ); 2 x AWG 14 to AWG 10 ( copper )
Length
3.13 in
Description
Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series HOM, Phase Single, Series HOM, Max. AIR Rating 10kA at 120V AC, For Use With Homeline Load Center, Terminal Connection Screw Clamp, Frame Size 100A/HOM, Length 3.13 in, Width 1 in, Depth 2.98 in, Min. Operating Temp. 77 Degrees F
