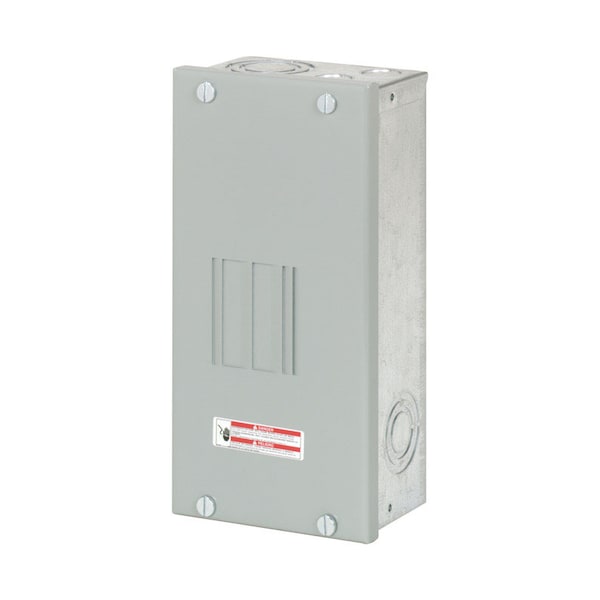

Eaton Load Center, BR, 2 Spaces, 70A, 120/240V AC, Main Lug, 1 Phase BR24L70SP - main

CAD Viewer & Download Files

Load Center, BR, 2 Spaces, 70A, 120/240V AC, Main Lug, 1 Phase

  • Mfr # BR24L70SP

  • Zoro # G2719069

CAD Available
product price: $34.19
/ea

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
2
Amps
70A
Voltage
120/240V AC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR24L70SP
Zoro #
G2719069
UPC #
786676001670
Country of Origin
United States

Dimensions

Height
23 in
Width
14.31 in
Depth
3.88 in
Min. Wire Size
#8
Max. Wire Size
2 AWG Cu/Al

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
2
Amps
70A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10kA
Series
BR
Enclosure Material
Metallic
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Standards
UL 67
Mounting Style
Surface
Weight
3.3 lb
Number Of Poles
Four-pole
Special features
Current design
Number Of Circuits
4
Number of wires
3
Used with
Type BR 1-inch breakers
CAD Available
Yes

Description

Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR24L70SP is a 70 amp main lug with 2 spaces and 4 circuits.


  • • 70 Amp Main Lug Load Center
  • • 2-1" Spaces, 4 Circuits
  • • Top or Bottom Feed
  • • Indoor, NEMA 1
  • • Surface Mount
  • • Uses Type BR, BD, BQ, GFCB Eaton Circuit Breakers
