Load Center, BRP, 20 Spaces, 100A, 120/240V AC, Main Circuit Breaker, 1 Phase
Mfr # BRP20B100V25
Zoro # G301259302
product price: $150.99
/ea
Free Shipping & Returns
Key Features
Main Circuit Breaker or Main Lug
Main Circuit Breaker
Number of Spaces
20
Amps
100 A
Voltage
120/240V AC
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BRP20B100V25
- Zoro #
- G301259302
- UPC #
- 786689058203
- Country of Origin
- United States
Dimensions
- Height
- 4.6 in
- Width
- 16 in
- Depth
- 24.6 in
- Max. Wire Size
- 1/0 AWG (Cu/Al)
- Min. Wire Size
- 4 AWG (Cu/Al)
Details
- Item
- Load Center
- Main Circuit Breaker or Main Lug
- Main Circuit Breaker
- Number of Spaces
- 20
- Amps
- 100 A
- Voltage
- 120/240V AC
- Phase
- 1
- Short Circuit Current Rating
- 10kA
- Series
- BRP
- Included Enclosure Cover
- Cover Included
- Enclosure Material
- Metallic
- Enclosure NEMA Rating
- NEMA 1
- Bus Material
- Aluminum
- Includes
- Cover
- Interrupt Rating
- 10 kA
- Circuit Breaker Mounting Style
- Combination
- Standards
- UL 50
- Max. AIR Rating
- 10 kA
- Circuit Breaker Type
- BR
- For Use With
- Type BR 1-inch Breakers

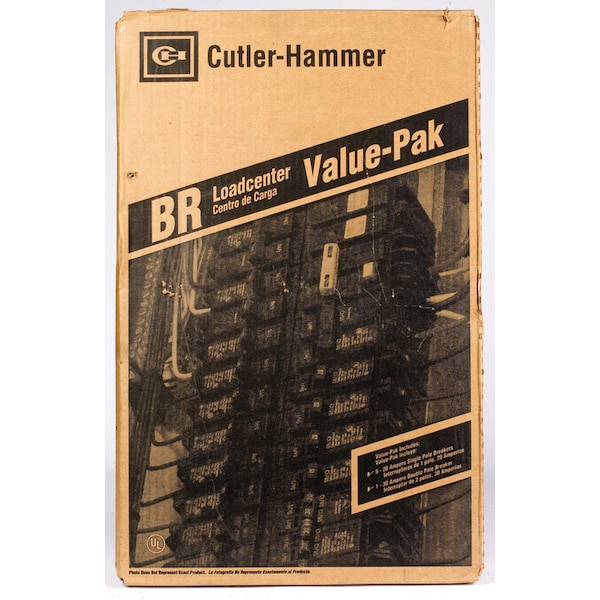

Description
Specially designed for easy installation, Eaton's Cutler-Hammer
- • 100 Amp Main Breaker Load Center
- • Value Pack
- • Includes 5 BR120 and 1 BR230
- •
- •
