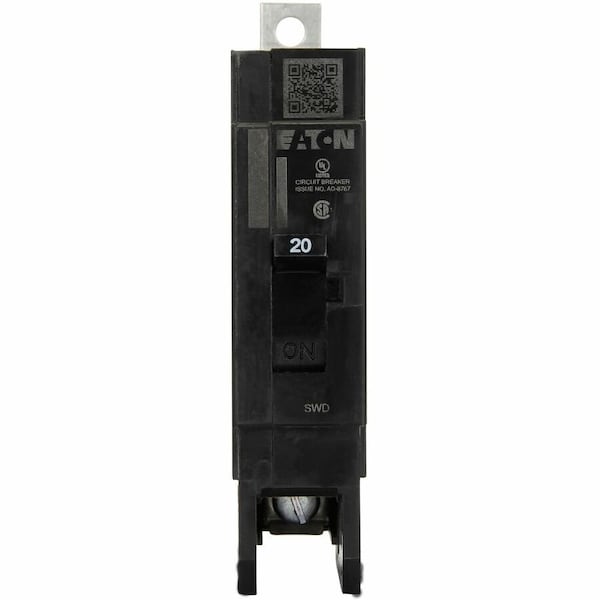

Miniature Circuit Breaker, GHB Series, 20A, 1 Pole, 277V AC, 14kA at 277V AC
Mfr # GHB1020
Zoro # G3783407
CAD Available
product price:Â $107.95
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Series
GHB
Number of Poles
1
AC Voltage Rating
277V AC
Circuit Breaker Type
Standard
Phase
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
GHB1020
Zoro #
G3783407
UPC #
786679023624
Country of Origin
Dominican Republic
Dimensions
Frame Size
100A/GHB
Width
1 in
Depth
2.63 in
Height
4 in
Min. Wire Size
14 AWG
Max. Wire Size
10 AWG
Length
4 in
Description
Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 277V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating 125V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series 1A, Phase Single, Series GHB, Max. AIR Rating 14kA at 277V AC, For Use With Eaton Powerline Panelboards, Terminal Connection Screw Clamp, Frame Size 100/GHB, Length 4 in, Width 1 in, Depth 2.63 in, Min. Operating Temp. -4 Degrees F
