Miniature Circuit Breakers MCBs EA
Mfr # QB1015GF
Zoro # G116525043
product price: $252.99
/ea
Free Shipping & Returns
Key Features
Gauge
14 to 4 AWG
Type
Thermal Magnetic
Interrupt Rating
10 kA
Terminal Trip Sensitivity
5 mA
Current Rating
15 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
QB1015GF
Zoro #
G116525043
UPC #
78668022248
Country of Origin
Dominican Republic
Dimensions
Size
3.5 in. W x 4 in. D x 1 in. H
Max. Wire Size
14 to 4 AWG
Depth
4 in
Height
1 in
Frame Size
QB
Width
3.5 in
Details
Gauge
14 to 4 AWG
Type
Thermal Magnetic
Interrupt Rating
10 kA
Terminal Trip Sensitivity
5 mA
Current Rating
15 A
Mounting
Bolt-On
Standards
UL 489/943/1053, CSA
Number of Poles
1
Amps
15A
AC Voltage Rating
120/240V
Item
Circuit Breaker
Trip Type
Non-Interchangeable
Circuit Breaker Type
GFCI
Terminal Connection
Bolt-On
Circuit Breaker Mounting Style
Bolt On
Max. AIR Rating
10kA
Description

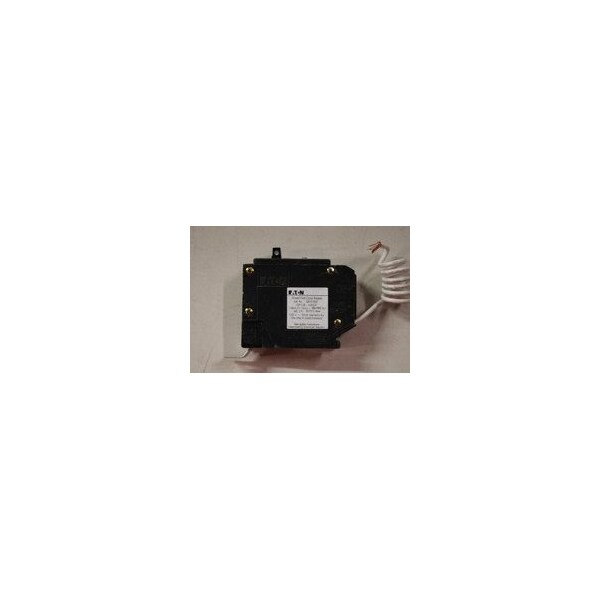

EATON QB GFCI CIRCUIT BREAkER,BOLT-ON EQUIPMENT PROTECTION,15A,10 kAIC,SINGLE-PO
