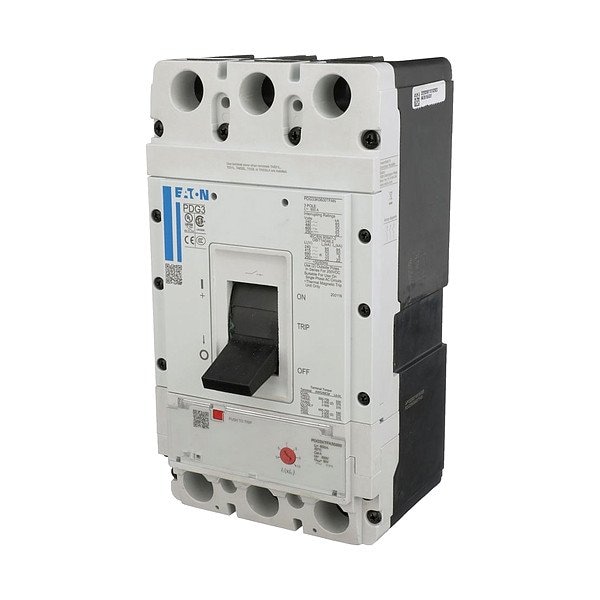

Molded Case Circuit Breaker, 600V AC
Mfr # PDG33G0600TFAJ
Zoro # G922580885
product price:Â $3,220.99
/ea
Free Shipping & Returns
Key Features
Series
Power Defense
Max. AIR Rating
35kA at 480V
Trip Type
Fixed Thermal, Adjustable Magnetic
Instantaneous Trip
Adjustable
Terminal Connection
Std Line Load Term
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PDG33G0600TFAJ
- Zoro #
- G922580885
- UPC #
- 786679477045
- Country of Origin
- Dominican Republic
Dimensions
- Frame Size
- Frame 3
- Width
- 138.9 mm
- Depth
- 109.1 MM
- Height
- 257.1 MM
Details
- Item
- Molded Case Circuit Breaker
- Series
- Power Defense
- Max. AIR Rating
- 35kA at 480V
- Trip Type
- Fixed Thermal, Adjustable Magnetic
- Instantaneous Trip
- Adjustable
- Terminal Connection
- Std Line Load Term
- Number of Poles
- 3
- Amps
- 600A
- Circuit Breaker Type
- Molded Case
- Phase Connection
- ABC
- Standards
- CCC Marked, CSA Certified, IEC 60947-2, RoHS Compliant, UL 489
- Low Amp Trip Setting
- 600 A
- Phase
- Three
- High Amp Trip Setting
- 600 A
- AC Voltage Rating
- 600V AC
- For Use With
- Motor Starters
- Max. Operating Temp.
- 158 Degrees F
Description
Molded Case Circuit Breaker, 600 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 35kA at 480V AC, For Use With Motor Starters, High Amp Trip Setting 600 A, Low Amp Trip Setting 600 A, Circuit Breaker Type Standard, Number of Poles 3, Terminal Connection Line/Load Lug, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 3, Height 7 in, Width 6.5 in, Depth 15 in, Max. Operating Temp. 158 Degrees F, Standards CCC Marked, CSA Certified, IEC 60947-2, RoHS Compliant, UL 489
