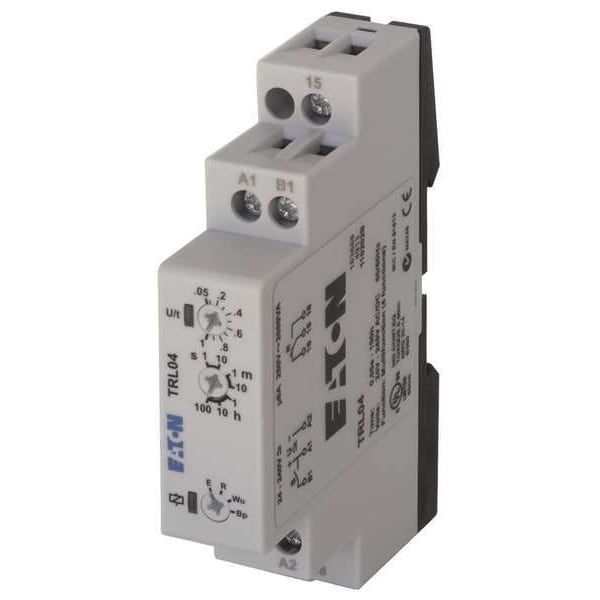

Multifunction Time Delay Relay, Octal, 4 Functions 24 to 240V AC/DC, SPDT

Mfr # TRL04
Zoro # G7109715

CAD Available

80.39

Key Features

CAD Drawing

Delay Function

Flasher Pause First, On/Off Delay, Power Triggered, Single Shot Leading Edge Voltage Controlled

Number of Delay Functions

Minimum Time Setting

0.05 sec

Maximum Time Setting

100 hr

Base Shape

Octal

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Details

MFR #: TRL04
Zoro #: G7109715
UPC #: 786685313573
Country of Origin: Austria
Item: Multifunction Time Delay Relay
Delay Function: Flasher Pause First, On/Off Delay, Power Triggered, Single Shot Leading Edge Voltage Controlled
Number of Delay Functions: 4
Minimum Time Setting: 0.05 sec
Maximum Time Setting: 100 hr
Base Shape: Octal
Number of Pins: 8
Coil Voltage: 24 to 240V AC/DC
Current Rating: 8 A
Contact Form: SPDT
Contact Rating (AC): 8 A @ 250V
Electrical Connection: Screw Clamp
Number of Functions: 4
Adjustment Method: Rotary Dip Switch
Contact Material: Silver Alloy
Contact Amp Rating (Resistive): 8A
Status Indicator: LED
Standards: CE Certified, CSA Certified, cULus Listed, TUV Certified
Operating Functions: 8, 9, 10 + 1 Others
Coil Rating: 4VA
Input Voltage: 24 to 240V AC/DC
Series: TR
IP Rating: IP40
Mechanical Operating Durability: 20,000,000
Operating Time Accuracy: Less Than0.5% +/-5ms
Maximum Operating Temperature: 131 Degrees F
Sealing: Enclosed
Minimum Operating Temperature: -13 Degrees F
Weight: 1.44 oz
Mounting Style: DIN Rail
Frequency: 50/60 Hz
Electrical Operating Durability: 200,000
Power Consumption: 1.5 W, 4 VA
Certifications: CSA Certified;cULus Listed
Enclosure Material: Self-extinguishing plastic
Compliances: CE Marked;TUV
Time Delay: 0.05 seconds-100 hours
Frequency Rating: 50-60 Hz
Product Name: Eaton TR timing relay
Functions: ON/OFF delay;Power triggered;Single shot leading edge voltage controlled;Flasher-pause first
CAD Available: Yes

Description

Multi-Function Time Delay Relay, Adjustment Method Rotary Dip Switch, Base Shape Octal, Coil Voltage 24 to 240V AC/DC, Contact Form SPDT, Contact Rating (AC) 8 A @ 250V, Current Rating 8 A, Number of Delay Functions 4, Delay Function Flasher Pause First, On/Off Delay, Power Triggered, Single Shot Leading Edge Voltage Controlled, Electrical Connection Screw Clamp, Flat Pin Width Not Applicable, IP Rating IP40, Input Voltage 24 to 240V AC/DC, Minimum Time Setting 0.05 sec
