  13. NEMA Fusible Str, Size 3,208V Coil, 12 Enc

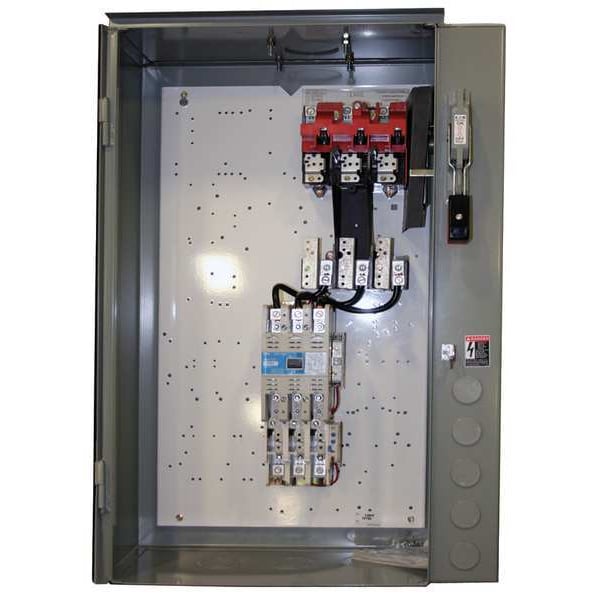

Eaton NEMA Fusible Str, Size 3,208V Coil, 12 Enc ECN1638EAF-R63/E - main

NEMA Fusible Str, Size 3,208V Coil, 12 Enc

  • Mfr # ECN1638EAF-R63/E

  • Zoro # G6367261

product price: $4,220.99
/ea
Free Shipping & Returns

Key Features

NEMA Size
3
Amps AC
90
Max. Motor Voltage
250V AC
Coil Volts
208V AC
Fuse Clip Type
RK5-250V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ECN1638EAF-R63/E
Zoro #
G6367261
UPC #
-
Country of Origin
United States

Dimensions

NEMA Size
3

Details

Item
NEMA Combination Starter
Amps AC
90
Max. Motor Voltage
250V AC
Coil Volts
208V AC
Fuse Clip Type
RK5-250V AC
Enclosure NEMA Rating
12
Auxiliary Contact Form
1NO
Short Circuit Protection
Fusible Disconnect
Overload Relay Amp Setting
20 to 100A
Operator
No
Trip Class
10/20/30
Pilot Light
No
Control Transformer
No
HP @ 3 Phase - 480V
50 hp
HP @ 3 Phase - 240V
30 hp
Hz
60
Standards
ABS, CSA, OSHPD, UL Listed
Control Transformer Voltage
208V AC Primary, 120V AC Secondary
Number of Poles
3
Horsepower @ Three Phase - 480V AC
50 hp
Mounting Style
Through Panel
For Fuse Class
Class R
Mounting Postion
Horizontal, Vertical
Includes Control Transformer
Yes
IP Rating
IP20
Reversing Capability
Non-Reversing
Number of Auxillary Contacts
1
Current AC
90 A
Horsepower @ Single Phase - 120V AC
Not Rated
Starter Style
NEMA
Terminal Connection Type
Screw Terminals
Maximum Voltage Rating
600V AC
Horsepower @ Three Phase - 240V AC
30 hp
Frequency
60 Hz
Phase
Three
Minimum Overload Relay Current Setting
20 A
Series
Freedom
Horsepower @ Single Phase - 240V AC
Not Rated
Resistance Properties
Impact Resistant, Tamper Resistant
Includes Pilot Light
No
Includes Auxiliary Contacts
Yes
Electrical Operating Durability
100,000
Horsepower @ Three Phase - 600V AC
50 hp
Auxiliary Contact Module Capacity
4
Overload Protection Type
Electronic
NEMA Enclosure Rating
12
Number of Terminals
3
Maximum Overload Relay Current Setting
100 A
Horsepower @ Three Phase - 208V AC
25 hp
Coil Voltage
208V AC

Description

NEMA Combination Starter, Coil Voltage 208V AC, Current AC 90 A, Horsepower @ Three Phase - 600V AC 50 hp, Maximum Voltage Rating 600V AC, NEMA Enclosure Rating 12, NEMA Size 3, Hazardous Location Specification Not Applicable, Starter Style NEMA, Reversing Capability Non-Reversing, Auxiliary Contact Form 1NO, Short Circuit Protection Fusible Disconnect, Includes Control Transformer Yes, Trip Class 10/20/30, Horsepower @ Three Phase - 208V AC 25 hp
