  13. NEMA Magnetic Motor Starter, Reversing, 1NO, 120V AC, 3 P

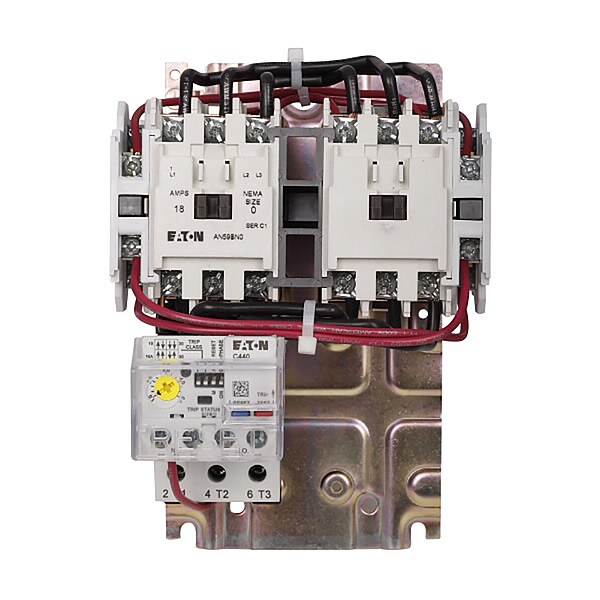

Eaton NEMA Magnetic Motor Starter, Reversing, 1NO, 120V AC, 3 P AN59BN0A5E005 - main

NEMA Magnetic Motor Starter, Reversing, 1NO, 120V AC, 3 P

  • Mfr # AN59BN0A5E005

  • Zoro # G3739556

product price: $899.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Reversing
Number of Auxillary Contacts
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AN59BN0A5E005
Zoro #
G3739556
UPC #
786685413198
Country of Origin
Dominican Republic

Dimensions

NEMA Size
0
Product Length/Depth
9.5 in
Overall Width
6.5 in
Overall Height
5.75 in
Overall Depth
9.5 in

Details

Item
NEMA Magnetic Motor Starter
Auxiliary Contact Form
1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Reversing
Number of Auxillary Contacts
1
Standards
CE, CSA, UL Listed
HP @ 3 Phase - 575V
5 hp
HP @ 1 Phase - 230V
2 hp
Includes
Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
Enclosure Type
Open
Weight
4.09 lb
Product Name
Eaton Freedom NEMA motor control starter
Overload Relay
C440 electronic
Special Features
With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
Horsepower @ Single Phase - 240V AC
2 hp
Current AC
18 A
Mounting Style
Surface
Maximum Voltage Rating
600V AC
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 480V AC
5 hp
Phase
Three
Frequency
50/60 Hz
Mounting Postion
Horizontal
Horsepower @ Single Phase - 120V AC
1 hp
Horsepower @ Three Phase - 208V AC
3 hp
Trip Class
10A/10/20/30
Starter Style
NEMA
Auxiliary Contact Module Capacity
6
Operator
None
Includes Auxiliary Contacts
Yes
Horsepower @ Three Phase - 600V AC
5 hp
Series
Freedom
Maximum Overload Relay Current Setting
5:00 AM
Horsepower @ Three Phase - 240V AC
3 hp
Minimum Overload Relay Current Setting
1 A
Overload Protection Type
Electronic

Description

NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 5 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 1 A, Trip Class 10A/10/20/30, Series Freedom, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Operator None, Operator Function Not Applicable, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Reversing, Maximum Voltage Rating 600V AC
