This item is Discontinued.

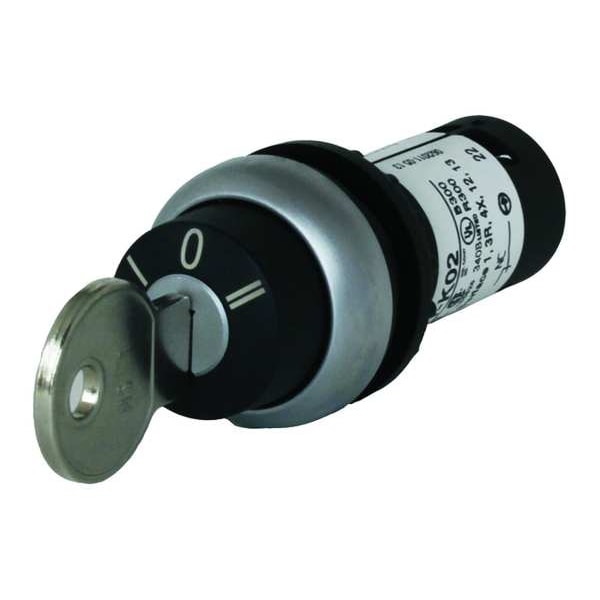

Eaton Non-Illum Selector Switch, 3P, Momentary C22-WS3-MS1-K20

Non-Illum Selector Switch, 3P, Momentary (Discontinued)

  • Mfr # C22-WS3-MS1-K20
  • Zoro # G6222587
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
C22-WS3-MS1-K20
Zoro #
G6222587
UPC #
782113227566
Country of Origin
Germany

Dimensions

Size
22 mm
Product Length/Depth
2.5 in
Product Height
1.8 in
Product Width
1.8 in
Panel Cutout Diameter
22 mm

Details

Item
Selector Switch
Basic Material
Plastic
Type of Operator
Keyed, Number MS1
Contact Form
2NO
Action
Momentary/Maintained/Momentary
Operator Head Material
Polycarbonate
Cam
No Cam
Color
Black
NEMA Rating
1, 12, 13, 3, 4X
Position
3
Bezel Material
Polycarbonate
Key Removal
Center
Bezel Color
Silver
IP Rating
IP65
Switch Operation @ Position C
OX
Contact Rating
1.5A @ 230V AC, 3A @ 24V DC
Includes
(1) Key, Assembled Pushbutton
Switch Operation @ Position D
No Fourth Position
Switch Operation @ Position B
OO
NEMA Contact Rating Designation
A600
Switch Operation @ Position A
XO
Standards
CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL Listed, VDE 0660
Series
C22
Rating
NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Number Of Positions
3
Cam code
Cam 3
Actuator
Key operated
Compliances
CE Marked
Throw type
60°
Type
30.5 mm, Heavy-Duty
Illumination
Non-illuminated
Certifications
UL Listed
Key removal position
All positions
Contact Configuration
2 NO
Actuator Function
Momentary, key removal center
Product Name
Eaton C22 compact pushbutton
Number of Positions
3
Switch Function @ 2nd Position
Off
Switch Function @ 1st Position
On
Switch Function @ 4th Position
No Fourth Position
Key Removal Position
Center
NEMA Enclosure Rating
1, 12, 13, 3, 4X
Operator Head Type
Keyed
Switch Function @ 3rd Position
On
Operator Illumination
Non-Illuminated

Description

Selector Switch, 22 mm, 3 Position, Momentary/Maintained/Momentary Action, 2NO Contact Form, Type of Operator Keyed, Number MS1, Color Black, Center Key Removal, Operator Head Material Polycarbonate, Basic Material Plastic, Bezel Material Polycarbonate, Bezel Color Silver, Contact Rating 1.5A @ 230V AC, 3A @ 24V DC, NEMA Contact Rating Designation AC-15, DC-13, NEMA Rating 1, 12, 13, 3, 4X, IP Rating IP65, Cam No Cam, Switch Operation @ Position A XO, Switch Operation @ Position B OO
