This item is Discontinued.

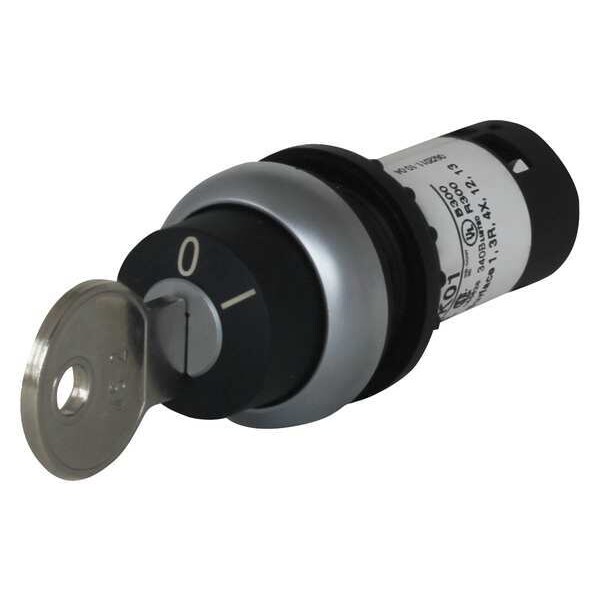

Eaton Non-Illum Selector Switch, Maintained, 1NC C22-WRS-MS1-A1-K01

Non-Illum Selector Switch, Maintained, 1NC (Discontinued)

  • Mfr # C22-WRS-MS1-A1-K01
  • Zoro # G6223856
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
C22-WRS-MS1-A1-K01
Zoro #
G6223856
UPC #
-
Country of Origin
Germany

Dimensions

Size
22 mm
Product Width
1.17 in
Product Length/Depth
1.17 in
Product Height
3.63 in
Panel Cutout Diameter
22 mm

Details

Item
Selector Switch
Basic Material
Plastic
Type of Operator
Keyed, Number MS1
Contact Form
1NC
Action
Maintained/Maintained
Operator Head Material
Polycarbonate
Cam
No Cam
Color
Black
NEMA Rating
1, 12, 13, 3, 4X
Position
2
Bezel Material
Polycarbonate
Bezel Color
Silver
Key Removal
Left
NEMA Contact Rating Designation
A600
Switch Operation @ Position B
X
IP Rating
IP65
Switch Operation @ Position C
No Third Position
Includes
Assembled Pushbutton
Standards
CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL Listed, VDE 0660
Switch Operation @ Position D
No Fourth Position
Contact Rating
1.5A @ 230V AC, 3A @ 24V DC
Switch Operation @ Position A
X
Series
C22
Certifications
UL Listed
Compliances
DIN VDE 0600
Actuator function
Maintained, key removal left 40°
Contact configuration
1 NC
Type
Selector Switch
Bezel
Silver
Actuator
Key operated
Illumination
Non-illuminated
Number Of Positions
2
Button color
Black
Product Name
Eaton C22 compact pushbutton
Operator Illumination
Non-Illuminated
Switch Function @ 1st Position
On
Operator Head Type
Keyed
Key Removal Position
Left
Switch Function @ 4th Position
No Fourth Position
Number of Positions
2
Switch Function @ 3rd Position
No Third Position
NEMA Enclosure Rating
1, 12, 13, 3, 4X
Switch Function @ 2nd Position
On

Description

Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, 1NC Contact Form, Type of Operator Keyed, Number MS1, Color Black, Left Key Removal, Operator Head Material Polycarbonate, Basic Material Plastic, Bezel Material Polycarbonate, Bezel Color Silver, Contact Rating 1.5A @ 230V AC, 3A @ 24V DC, NEMA Contact Rating Designation AC-15, DC-13, NEMA Rating 1, 12, 13, 3, 4X, IP Rating IP65, Cam No Cam, Switch Operation @ Position A X, Switch Operation @ Position B X
