  13. Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever

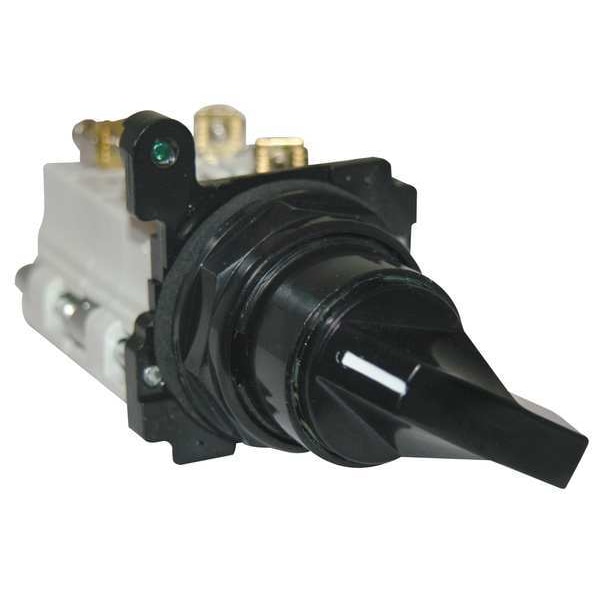

Eaton Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever E34VHBL1-Y2 - main

Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever

  • Mfr # E34VHBL1-Y2

  • Zoro # G5227494

product price: $193.30
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Lever
Contact Form
2NO/2NC
Action
Maintained/Maintained/Maintained
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E34VHBL1-Y2
Zoro #
G5227494
UPC #
786680121401
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Diameter
1.78 in
Product Length/Depth
1 in
Product Width
1 in
Product Height
1 in
Overall Height
1 in
Overall Depth
1 in
Manufacturer Warranty Length
1 yr
Panel Cutout Diameter
30 mm
Overall Width
1 in

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Lever
Contact Form
2NO/2NC
Action
Maintained/Maintained/Maintained
Operator Head Material
Polymer
Cam
3
Color
Black
NEMA Rating
12, 13, 3, 3R, 4, 4X
Position
3
Bezel Material
Zinc
Key Removal
No Key
Bezel Color
Chrome
IP Rating
IP68
Switch Operation @ Position C
OOX
Contact Rating
10A @ 600V AC
Standards
CE, CSA, FDA 3-A, UL Listed
Switch Operation @ Position A
XOO
Switch Operation @ Position B
OXO
NEMA Contact Rating Designation
A600/P600
Includes
Assembled Pushbutton
Switch Operation @ Position D
No Fourth Position
DC Contact Rating
5 A @ 250 V
Series
E34
AC Contact Rating
10 A @ 600 V
Actuator color
Black
Illumination
Non-illuminated
Actuator
Lever
Number Of Positions
3
Type
30.5 mm, Corrosion Resistant
Throw type
60°
Compliances
CE Marked
Cam code
Cam 3
Rating
NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Certifications
UL Listed
Product Name
Eaton E34 pushbutton
Hazardous Location Specification
Not Rated
Switch Function @ 1st Position
On
Operator Illumination
Non-Illuminated
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Switch Function @ 4th Position
No Fourth Position
Switch Function @ 3rd Position
On
Number of Positions
3
Operator Head Type
Long-Handled Knob
Operator Head Color
Black
Contact Block Material
Metal
Switch Function @ 2nd Position
On

Description

Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, 2NO/2NC Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polymer, Basic Material Metal, Bezel Material Zinc, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP68, Cam 3, Switch Operation @ Position A XOO, Switch Operation @ Position B OXO, Switch Operation @ Position C OOX
