  7. Non-Illuminated Push Button, 22 mm, 1NC, Red

This item is Discontinued.

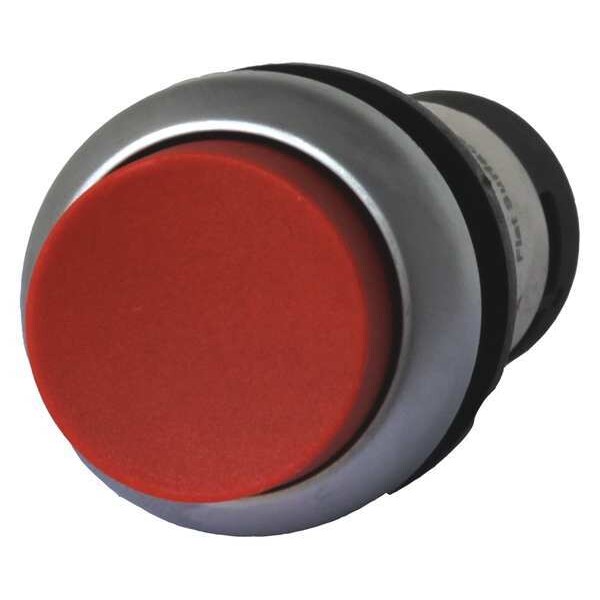

Eaton Non-Illuminated Push Button, 22 mm, 1NC, Red C22-DH-R-K01

Non-Illuminated Push Button, 22 mm, 1NC, Red (Discontinued)

  • Mfr # C22-DH-R-K01
  • Zoro # G6227015
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
C22-DH-R-K01
Zoro #
G6227015
UPC #
786685897387
Country of Origin
Germany

Dimensions

Size
22 mm
Product Length/Depth
1.17 in
Product Width
1.17 in
Product Height
2.4 in
Panel Cutout Diameter
22 mm

Details

Action
Momentary
Head Material
Plastic
NEMA Rating
1, 12, 13, 3, 4X
Type of Operator
Extended Button
Color
Red
Contact Form
1NC
Bezel
Silver Nylon
Number of Operators
1
Item
Extended Push Button Operator
Contact Rating
1.5A @ 230V AC, 3A @ 24V DC
Bezel Material
Silver Nylon
Basic Material
Plastic
IP Rating
IP67, IP69K
Terminal Connection
Pressure Plate
NEMA Contact Rating Designation
A600
Material
Plastic
Standards
CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL Listed, VDE 0660
Type
Pushbutton
Series
C22
Product Type
Push Button Operators
Certifications
EN 60947
Illumination
Non-illuminated
Button color
Red
Actuator
Extended button
Contact configuration
1 NC
Compliances
DIN VDE 0600
Actuator function
Momentary
Product Name
Eaton C22 compact pushbutton
NEMA Enclosure Rating
1, 12, 13, 3, 4X
Head Color
Red
Operator Material
Plastic
Push Button Style
Extended

Description

Extended Push Button Operator, 22 mm, Momentary Action, Extended Button Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Silver Nylon, Color Red, Contact Rating 1.5A @ 230V AC, 3A @ 24V DC, NEMA Contact Rating Designation AC-15, DC-13, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 4X, IP Rating IP67, IP69K, Legend Not Applicable, Standards CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL Listed, VDE 0660, Terminal Connection Pressure Plate, Material Plastic
