  7. Non-Illuminated Push Button, 22 mm, 1NO, Green

This item is Discontinued.

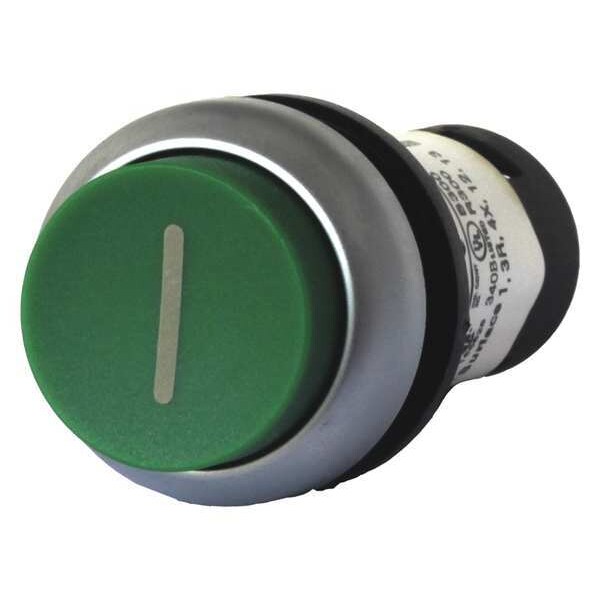

Eaton Non-Illuminated Push Button, 22 mm, 1NO, Green C22-DH-G-X1-K10

Non-Illuminated Push Button, 22 mm, 1NO, Green (Discontinued)

  • Mfr # C22-DH-G-X1-K10
  • Zoro # G6077985
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C22-DH-G-X1-K10
Zoro #
G6077985
UPC #
786685896786
Country of Origin
Germany

Dimensions

Size
22 mm
Panel Cutout Diameter
22 mm

Details

Action
Momentary
Head Material
Plastic
Legend/Background Color
White/Green
NEMA Rating
1, 12, 13, 3, 4X
Type of Operator
Extended Button
Color
Green
Contact Form
1NO
Bezel
Silver Nylon
Legend
I
Number of Operators
1
Item
Extended Push Button Operator
Contact Rating
1.5A @ 230V AC, 3A @ 24V DC
Bezel Material
Silver Nylon
Standards
CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL Listed, VDE 0660
Material
Plastic
IP Rating
IP67, IP69K
Basic Material
Plastic
NEMA Contact Rating Designation
A600
Terminal Connection
Pressure Plate
Product Type
Push Button Operators
Head Color
Green
Push Button Style
Extended
NEMA Enclosure Rating
1, 12, 13, 3, 4X
Operator Material
Plastic

Description

Extended Push Button Operator, 22 mm, Momentary Action, Extended Button Type of Operator, Head Material Plastic, Contact Form 1NO, Bezel Silver Nylon, Color Green, Contact Rating 1.5A @ 230V AC, 3A @ 24V DC, NEMA Contact Rating Designation AC-15, DC-13, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 4X, IP Rating IP67, IP69K, Legend I, Legend/Background Color White/Green, Standards CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL Listed, VDE 0660, Terminal Connection Pressure Plate
