  7. Non-Illuminated Push Button, 22 mm, 2NO, Green

This item is Discontinued.

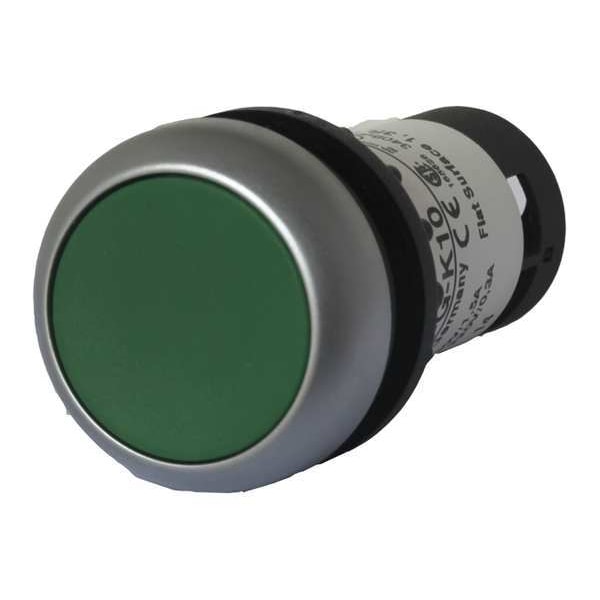

Eaton Non-Illuminated Push Button, 22 mm, 2NO, Green C22-D-G-K20

Non-Illuminated Push Button, 22 mm, 2NO, Green (Discontinued)

  • Mfr # C22-D-G-K20
  • Zoro # G6223576
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
C22-D-G-K20
Zoro #
G6223576
UPC #
786685897356
Country of Origin
Germany

Dimensions

Size
22 mm
Product Length/Depth
1.17 in
Product Width
1.17 in
Product Height
2.15 in
Panel Cutout Diameter
22 mm

Details

Action
Momentary
Head Material
Plastic
NEMA Rating
1, 12, 13, 3, 4X
Type of Operator
Flush Button
Contact Form
2NO
Color
Green
Bezel
Silver Nylon
Number of Operators
1
Contact Rating
1.5A @ 230V AC, 3A @ 24V DC
Item
Flush Push Button Operator
Bezel Material
Silver Nylon
Material
Plastic
Terminal Connection
Pressure Plate
Basic Material
Plastic
NEMA Contact Rating Designation
A600
IP Rating
IP67, IP69K
Standards
CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL Listed, VDE 0660
Type
Pushbutton
Series
C22
Product Type
Push Button Operators
Degree of protection
NEMA 4X
Certifications
IEC 60947
Contact configuration
2 NO
Enclosure
IP67
Compliances
DIN VDE 0600
Illumination
Non-illuminated
Actuator
Flush button
Actuator Material
Plastic
Button color
Green
Operating mode
Momentary
Actuator function
Momentary
Operating cycles
5 million
Mounting method
Flush
Actuator Color
Green
Product Name
Eaton C22 compact pushbutton
Operator Material
Plastic
Push Button Style
Flush
NEMA Enclosure Rating
1, 12, 13, 3, 4X
Head Color
Green

Description

Flush Push Button Operator, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 2NO, Bezel Silver Nylon, Color Green, Contact Rating 1.5A @ 230V AC, 3A @ 24V DC, NEMA Contact Rating Designation AC-15, DC-13, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 4X, IP Rating IP67, IP69K, Legend Not Applicable, Standards CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL Listed, VDE 0660, Terminal Connection Pressure Plate, Material Plastic
